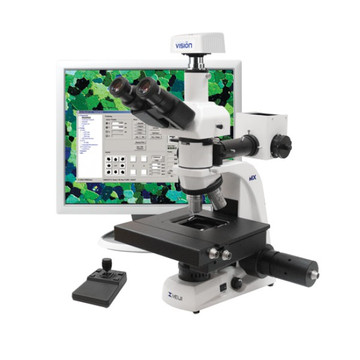

Meiji MT5300LM Trinocular Digital Motorized Microscope

Meiji MT5300LM Trinocular Motorized Digital Microscope

Meiji Techno
SKU:
MT5300LM
$41,327.58
Current Stock:
Adding to cart… The item has been added
Accessory Products
Description

The Meiji MT5300LM motorized microscope changes your way of work completely from manual to automated operations enhancing your work efficiency. The design of a motorized microscope focuses on convenience and ease. You operate an integrated system of a microscope, camera and computer without wasting time on manual microscopy.

Automated capturing panoramic images of specimens: combining several fields of view into a single image; you set borders of the image and the motorized system generates a macro-specimen automatically.

Automated navigation: if you are interested in a specific object in the specimen the system can save the coordinates of the field of view for it; when needed, the motorized system can quickly return to it from another field of view automatically.

Autofocus: set the focus automatically while processing a specimen.

Automated analysis: create a specimen analysis profile and the system will perform required operations automatically; it will only take placing a specimen on the stage and activating the profile to get the system to prepare an analysis report for you automatically. A motorized microscope is designed for a number of specimens to be placed simultaneously, which allows the system to run a number of tests in one session, reducing the service time of system. The autofocus mechanism of the microscope moves along the z-axis. This system has a motorized stage and a focus drive. In addition, the system has new and improved ICOS™ optics (microscopy optical system, infinity-corrected with tube lens, F=200mm). Motorized stage for metallurgical microscope of 2 or 3 level, 75 x 30mm.

Features:

  • Motorized Focus Drive and Motorized scanning stage, 75 x 30mm
  • 3-axis joystick control and integrated motorized components
  • Vision CAM 3200, USB 3.0 digital output, 3.2 MP, image sensor CMOS 1/1.8", resolution: 2064 x 1544 pixels, 120 fps
  • High Power - PC, Monitor, Keyboard and Mouse Package
  • Optical "C" mount 0.5x adapter
  • U Plan 4x, 10x, 40x, 100x, ICOS

Microscope Specifications

Viewing Head Siedentopf Trinocular head with photo port.
Eyepieces SWH 10x/22mm.
Nosepiece Quintuple.
Objectives U Plan 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25.
Condenser Numerical Aperture 0.9/1.25.
Stage Motorized stage for 1 slide, MA motorized focus drive, Adapter plate for focus drive (two plates, steel pin, screw), Retaining ring for focus drive, Spring-loaded coupling with two screws, Tango 3-axis controller and 3-axis joystick, Countersunk screw M3x6 DIN 7991 for focus drive (2), Allen screw M3x8 DIN 912 for stage (4), Screw kit (SW 3.0, 2.5, 2.0, 1.5, 1.3).
Illumination LED illumination.
Camera Vision CAM 3200, USB 3.0 digital output, 3.2 MP, image sensor CMOS 1/1.8″, resolution: 2064 x 1544 pixels, 120 fps.
PC CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, Keyboard and Mouse.
Monitor Resolution 1920 x 1080.
Software Vision Slide Software (CD).
