Metallurgical Microscopes

What is a Metallurgical Microscope?

A metallurgical microscope excels in analyzing opaque materials like metals and alloys, setting it apart from conventional microscopes. Unlike biological microscopes, which transmits light through specimens, metallurgical microscopes reflect light off specimen surfaces, revealing detailed images. This critical difference enables precise surface examination, crucial for material science, engineering, and quality control, making metallurgical microscopes essential for in-depth material analysis and assessment.

There are many different types of metallurgical microscopes. They may be categorized by the way they’re positioned, either upright metallurgical microscopes, an inverted metallurgical microscope, a portable metallurgical microscope, and sometimes they’re mounted on boom stands for viewing large samples. In addition to the positioning, illumination is a key variation for these microscopes, with the option of reflected illumination or reflected and transmitted illumination. Objective lenses can play a role in the categorization of your metallurgical microscope as well.

All of this means that, while metallurgical microscopes are different from biological microscopes, they also vary widely among themselves, oftentimes being very customized for specific types of work.

What are the Uses of Metallurgical Microscopes?

A metallurgical microscope is used to give you a closer view of a subject, but unlike a biological microscope, it looks at the surface of the subject. Many people are familiar with a biological microscope that often uses a thin slice or sample of a subject, and projects light through it for viewing. Metallurgical microscopes work with samples like metals and alloys that, by their nature, block light from passing through, instead, the light is reflected to produce an image and give you greater visibility.

Metallurgical microscopes are designed for examining the microstructure of diverse materials such as metals, ceramics, rocks, semiconductors, and plastics. Their critical role in industrial settings, particularly for engineers and metallurgists, lies in their ability to facilitate detailed analysis and inspection for quality control. These microscopes are indispensable in measuring thin films, inspecting electroplating, identifying inclusions and surface defects, and assessing grain size. These capabilities are essential for determining the quality and performance of various materials, making metallurgical microscopes a cornerstone in the fields of material science and industrial engineering.

Most frequently, metallurgical microscopes are used industrially where metals are used. They’re found in mining operations, smelting, alloy development, recycling, and additive manufacturing. You may find these microscopes in research and development labs as companies work to create new materials.

Other areas where you’ll find people working with metallurgical microscopes are quality assurance, failure analysis, and inspection. These three fields are very similar in that they’re digging into what works and works well and the opposite – what has failed or has the potential to fail. Metallurgical microscopes provide a huge degree of magnification (up to 500x and 1000x) for a much closer look at potential failures.

How Does a Metallurgical Microscope Work?

Metallurgical microscopes use high-power light sources and large working distances, which is, again, very different from biological microscopes. Metallurgical microscopes often use specialized objectives and lenses designed to focus on the surface of a sample rather than the interior. This allows them to provide high-resolution images of the microstructure of the material's surface.

By bouncing or reflecting light off of the surface, the metallurgical microscope can achieve magnifications up to 1000x, this gives the viewer insight into the intricate details of samples. The use of great distances between the objective lens and the sample also helps improve the visibility of the surface. In some situations, these microscopes are paired with polarization filters so the crystal structure of metals can be seen.

With metallurgical microscopes, you’re working with a subject that is not transparent, so illumination from the bottom, as is seen with many other microscopes, will not work. Instead, these microscopes use light that is directed onto the sample to create referred light for viewing the surface of the subject.

What Is the Difference Between Transmitted Light and Reflected Light in a Microscope?

The difference between transmitted light and reflected light, when it comes to microscopes, is that reflection is basically bouncing light off of the surface of a subject. When using transmission or transmitted light, it is passing through the subject. One really easy way to visualize the difference is to use the sun as your light source and bounce it off of a mirror, the result is reflected light. Now, continue using the sun and let it pass through a film or photo slide that is transmitted light.

What are the Best Metallurgical Microscopes for Quality Control?

If you’re considering a metallurgical microscope for quality control, your best first step is to contact New York Microscope Company and talk to one of our experts about your specific needs. We’d be happy to help you find the best microscope that fits within your budget so you work with confidence and ease. Quite honestly, the best metallurgical microscopes for quality control are ones that are customized to the specific work you’ll be doing.

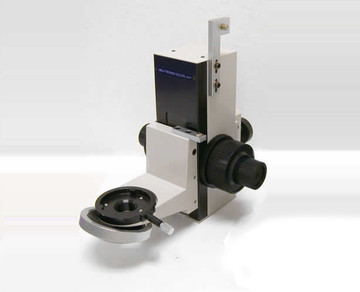

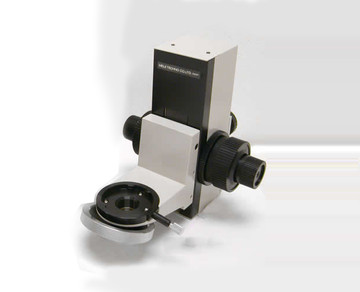

Buying a Metallurgical Microscope

Our selection of metallurgical microscopes is features microscopes used in quality control, examining the structure and properties of crystals, and studying the bonding of atoms in crystalline solids. We offer exact instruments in upright, reflected light configurations or inverted metallurgical microscope configurations to handle specimens both large and small. We even offer portable metallurgical microscopes for on-site material analysis. Our magnification ranges begin at 40x and grow to 400x, with the option to choose additional objectives such as 80x or 100x.

Custom Quotations on Metallurgical Microscopes

Let our experts create a custom quote just for you with our best pricing and terms on metallurgical microscopes. Simply tell us your requirements, and we'll do the rest.

Request a Quote

If you need product advice, technical support, or to enquire about quantity discounts, feel free to contact us by email or call us at (877) 877-7274.

New York Microscope Company is the only microscope company to offer a Free Service Protection Guarantee with the purchase of every metallurgical microscope. Visit our Free Service Protection page for more details.
