UNITRON 14800 INSPEX HD 1080p Digital Inspection Microscope with Integrated Table Stand
UNITRON- Electronics inspection and PCB rework
- Industrial quality control
- Precision component inspection
- Medical device inspection
- Automotive and aerospace inspection
- Jewelry and watchmaking
- Failure analysis and repair

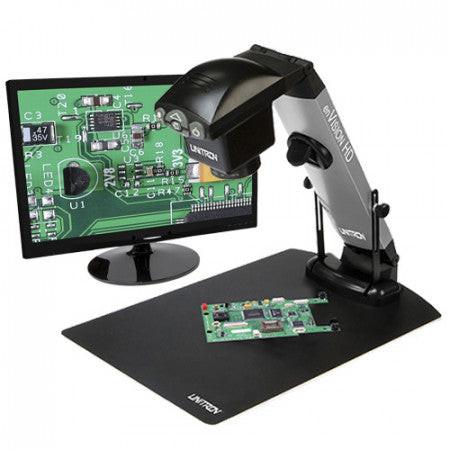

UNITRON 14800 INSPEX HD 1080p Digital Inspection Microscope with Integrated Table Stand
The UNITRON 14800 INSPEX HD 1080p is a digital inspection microscope designed for detailed visual inspection, quality control, repair, and rework applications. It features a Full HD 1080p camera with a 4D lens system, integrated adjustable LED illumination, and an integrated table stand for convenient benchtop inspection.
The system delivers magnification from 2.0x to 85x when viewed on a 24-inch monitor. Auto and manual focus modes, adjustable brightness, magnification controls, snapshot capture, and high-contrast mode support efficient inspection and documentation. HDMI and DVI outputs allow connection to an external monitor, while USB connectivity supports image capture.
Key Features
- Full HD 1080p digital microscope and inspection station
- 4D lens system included
- Magnification range of 2.0x to 85x on a 24-inch monitor
- 250mm working distance with the included 4D lens
- 1080p camera resolution at 60fps
- HDMI and DVI video output
- Auto and manual focus functionality
- Integrated adjustable LED illumination
- USB 2.0 image capture
- Integrated table stand for benchtop inspection
- External keypad available as an optional accessory
Product Specifications
| Brand | UNITRON |
| Model | 14800 |
| Series | INSPEX HD |
| Microscope Type | Digital Inspection Microscope |
| Camera Resolution | Full HD 1080p (1920 x 1080) |
| Frame Rate | 60fps |
| Lens System | 4D Lens Included |
| Magnification Range | 2.0x – 85x (on a 24-inch monitor) |
| Working Distance | 250mm (with included 4D lens) |
| Focus | Automatic and Manual |
| Video Output | HDMI and DVI |
| Image Capture | USB 2.0 |
| Illumination | Integrated Adjustable LED |
| Response Time | 5ms |
| Standard Functions | Brightness Adjustment, Magnification Adjustment, Snapshot, Overview, High Contrast Mode |
| Stand Type | Integrated Table Stand |
| Monitor | Required, Not Included |
| External Keypad | Optional Accessory |
| Power Supply | 100–240V, 50/60Hz |
| Power Consumption | 8W |
- Weight:
- 8.00 LBS
- Width:
- 16.00 (in)
- Height:
- 10.00 (in)
- Depth:
- 14.00 (in)
