UNITRON 14793-TS2 INSPEX 3 Digital Inspection Microscope with Premium Track Stand
UNITRON- Industrial inspection and quality control
- Electronics and PCB inspection
- Precision component inspection
- Manufacturing and assembly verification
- Dimensional measurement and defect analysis
- Product inspection and documentation

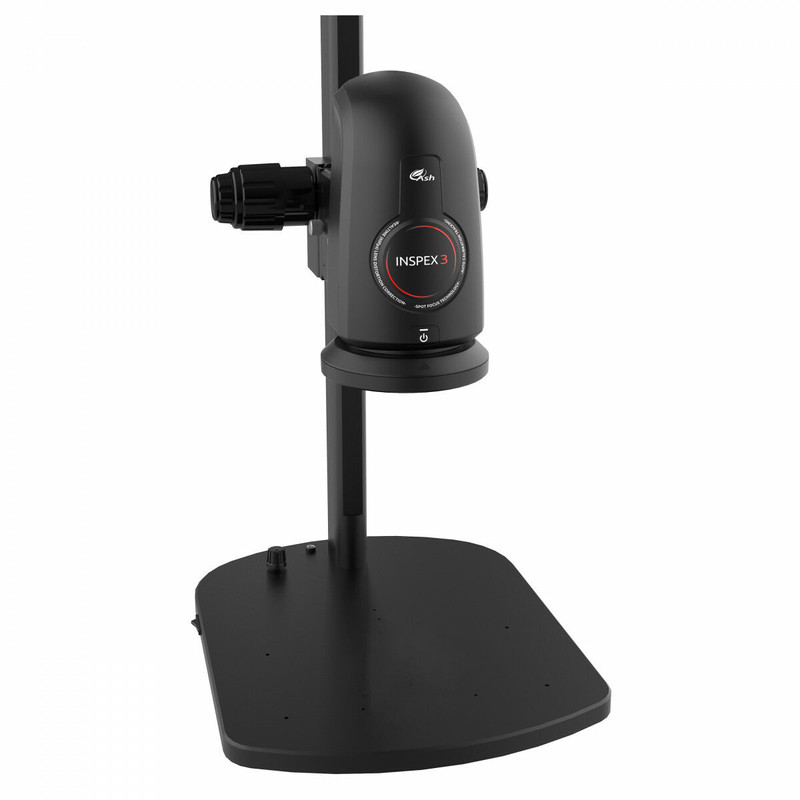

UNITRON 14793-TS2 INSPEX 3 Digital Inspection Microscope with Premium Track Stand
The UNITRON 14793-TS2 INSPEX 3 is a digital inspection microscope system designed for precision inspection, measurement, and quality control. This complete configuration includes the INSPEX 3 1080p digital inspection station with a 5D lens and a premium track stand, providing stable positioning and flexible focus adjustment for inspecting components and samples.
The INSPEX 3 features AshCal calibration tracking, on-screen preset configurations, 2D line measurement, user access control, and one-click autofocus. Its integrated LED ring light offers adjustable intensity and quadrant control for consistent sample illumination.
Key Features
- 1080p digital inspection microscope with included 5D lens
- Magnification range of 2.1x to 131.6x on a 24-inch monitor
- Maximum optical magnification of 65.6x and digital magnification of 131.6x
- Premium track stand with dual focus block and coarse and fine focus adjustment
- Three vertical mounting positions on the track
- AshCal calibration tracking across the zoom range
- 2D line measurement and on-screen inspection overlays
- Integrated LED ring light with intensity and quadrant control
- Wireless keyboard and mouse included
Product Specifications
| Brand | UNITRON |
| Model | 14793-TS2 |
| Series | INSPEX 3 |
| System Type | 1080p Digital Inspection Microscope |
| Lens | 5D Lens Included |
| Magnification Range | 2.1x – 131.6x (on a 24-inch monitor) |
| Maximum Optical Magnification | 65.6x |
| Maximum Digital Magnification | 131.6x |
| Working Distance | 200mm (with included 5D lens, as specified by UNITRON for this configuration) |
| Camera Resolution | 1920 x 1080 (Full HD) |
| Frame Rate | 60fps |
| Output | HDMI |
| USB Connectivity | Four USB 2.0 Ports, Mini USB |
| General Purpose I/O | 3 Ports |
| Storage | Internal Image Storage and Removable USB Storage |
| Illumination | Integrated LED Ring Light |
| LED Control | Intensity and Quadrant Control |
| LED Lamp Life | Approximately 40,000 Hours |
| Calibration | AshCal Calibration Tracking |
| Focus | One-Click Autofocus |
| Stand | Premium Track Stand Included |
| Stand Focus Mechanism | Dual Focus Block with Coarse and Fine Adjustment |
| Stand Mounting Positions | 3 Vertical Positions |
| Monitor | Required, Not Included |
| Optional Objectives | +10D, +25D, 1x Plan (5D) |
- Weight:
- 30.00 LBS
- Width:
- 15.35 (in)
- Height:
- 18.50 (in)
- Depth:
- 11.81 (in)
