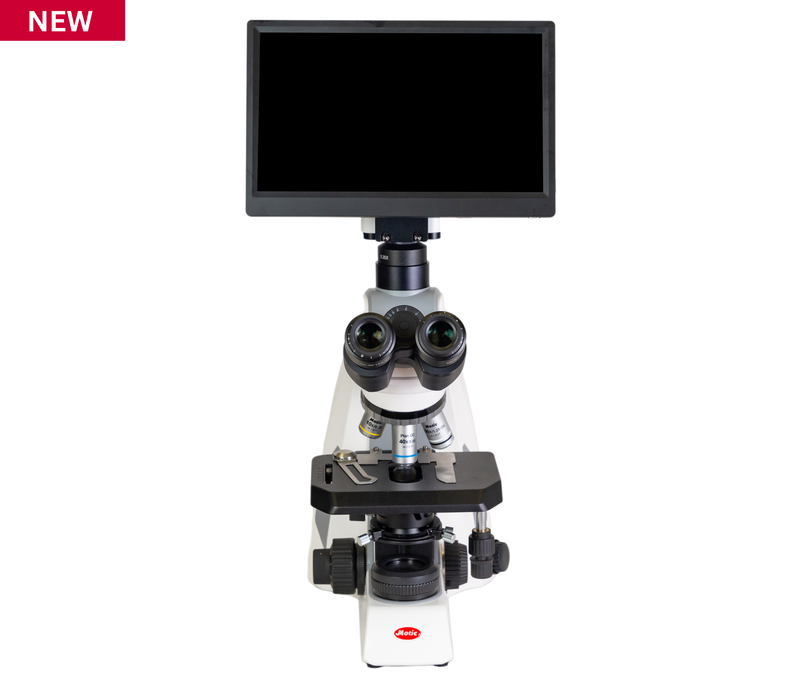

Motic Panthera C2 Trinocular Microscope with Moticam BMH4000X 8MP 4K Camera Bundle
MoticMotic Panthera C2 Trinocular Microscope with Moticam BMH4000X 8MP 4K Camera Bundle
The Motic Panthera C2 Trinocular Microscope with Moticam BMH4000X Camera Bundle is designed for clinical and laboratory microscopy applications. It is suitable for examining stained sections with cover glass protection, native smears, fine needle biopsies, and blood smears with or without cover glass.
Featuring Motic's Color Corrected Infinity Optical System (CCIS®), the Panthera C2 delivers excellent color fidelity and contrast. Its Ultra Contrast (UC) objectives provide a 22mm field of view and work with the widefield eyepieces to produce clear and detailed images.
The microscope features a trinocular Siedentopf head, coded reversed quintuple nosepiece, compact mechanical stage, and interchangeable Köhler LED and quartz halogen illumination. Motic LightTracer provides intelligent light management with light memory and automatic sleep mode.
The included Moticam BMH4000X is an 8MP digital imaging camera supporting 4K image capture and video recording. It features HDMI, USB and Wi-Fi 5 connectivity, along with an integrated 11.6-inch Full HD LCD screen for convenient image viewing and documentation.
Key Features
- CCIS® Color Corrected Infinity Optical System.
- Trinocular Siedentopf head with fixed 50:50 light split.
- 25° inclined observation head with 360° swiveling.
- Reversed coded quintuple nosepiece.
- CCIS® UC Plan Achromatic objectives: 4X, 10X, 40X and 100X oil immersion.
- Widefield UC-WF10X/20mm eyepieces with diopter adjustment.
- Compact mechanical stage with 75 × 50mm travel.
- Focusable and centerable Abbe condenser, NA 0.90/1.25.
- Interchangeable 3W Köhler LED and 6V/30W quartz halogen illumination.
- Motic LightTracer intelligent light management with light memory and sleep mode.
- Moticam BMH4000X 8MP digital camera.
- 4K image capture and video recording.
- Integrated 11.6-inch Full HD LCD screen.
- HDMI, USB and Wi-Fi 5 connectivity.
- Compatible C-mount adapter included.
Product Specifications
| Brand | Motic |
| Model | Panthera C2 Trinocular + Moticam BMH4000X Bundle |
| SKU | MOT-300223-IP-1026 |
| Motic Part Number | 1100403300223 |
| Bundle Includes | Panthera C2 Trinocular, Moticam BMH4000X, compatible C-mount adapter |
| Optical System | Color Corrected Infinity Optical System (CCIS®) |
| Observation Head | Trinocular Siedentopf type, 360° swiveling |
| Head Inclination | 25° inclined, 360° swiveling |
| Trinocular Light Split | Fixed 50:50 |
| Interpupillary Distance | 48–75 mm |
| Diopter Adjustment | ±5 diopter on both eyepieces |
| Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded |
| Objective Classification | CCIS® UC Plan Achromatic (Pb free) |
| Objectives | 4X/0.10 (WD 30.5 mm), 10X/0.25 (WD 17.4 mm), 40X/0.65/S (WD 0.6 mm), 100X/1.25/S-Oil (WD 0.16 mm) |
| Objective Mounting Thread | W 4/5" × 1/36" (RMS standard) |
| Stand Type | Upright |
| Stage | Compact mechanical stage with built-in low-position rackless coaxial stage control and sample holder |
| Stage Size | 185 × 145 mm |
| Travel Range X & Y | 75 × 50 mm |
| Condenser | Focusable and centerable Abbe condenser NA 0.90/1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus Mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine Focus Precision | 2 µm |
| Focusing Stroke | 25 mm |
| Upper Limit Stop | Preset but adjustable |
| Filter Holder | On top of the illuminator with fixing cap |
| Transmitted Illumination | Köhler LED 3W and quartz halogen 6V/30W with intensity control |
| Illumination Interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination Features | Motic LightTracer: light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator |
| Transformer | Internal |
| Power Supply | 110–240V (CE) |
| Other Features | USB 2.0 for external camera power |
| Accessories Included | Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module |
| Microscope Dimensions | 282 × 210 × 396 mm |
| Microscope Net Weight | 8.4 kg |
| Camera Model | Moticam BMH4000X |
| Camera Sensor Size | 1/2.8" |
| Image Output | HDMI, UXC, Wi-Fi 5 |
| Capture Resolution | 8MP |
| Pixel Size | 1.45 × 1.45 m (unit as displayed in source) |
| Scan Mode | Progressive |
| Shutter Mode | Rolling shutter |
| Lens Mount | C-Mount |
| Maximum Frame Rate | HDMI: 30fps at 3840 × 2160; Wi-Fi: 25fps at 1920 × 1080 and 12fps at 3840 × 2160; USB: 30fps at 3840 × 2160 |
| Image Capture | JPEG/TIFF, 4K (3840 × 2160) resolution on SD card |
| Video Recording | 4K (30fps at 3840 × 2160), H.264/H.265 encoded MP4 on SD card |
| Camera Screen | 11.6-inch LCD, native 1920 × 1080 Full HD |
| Camera Software | Motic Images Plus 3.1 for Windows/Mac OS and onboard software |
- Weight:
- 22.00 LBS
- Width:
- 18.00 (in)
- Height:
- 17.00 (in)
- Depth:
- 22.00 (in)
