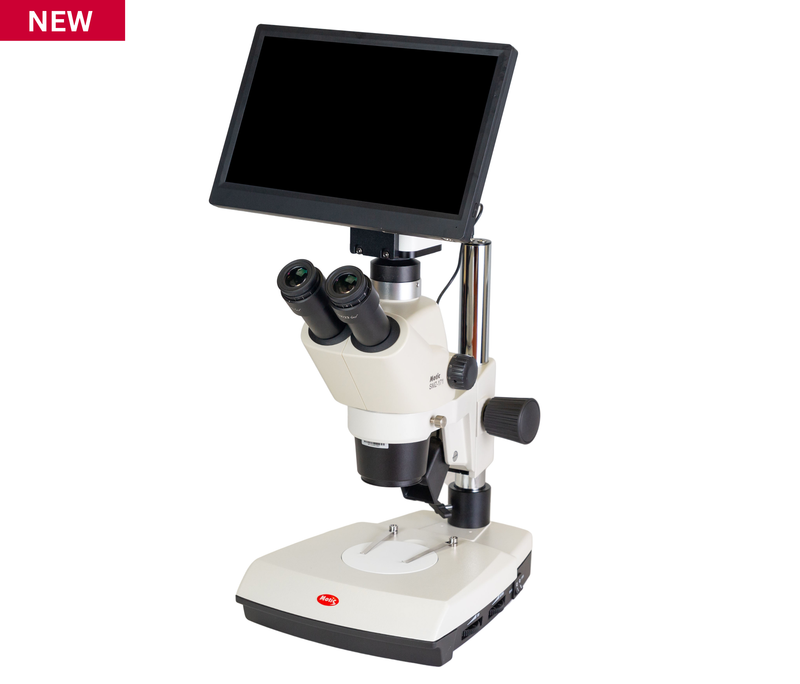

Motic SMZ-171-TLED Trinocular Stereo Microscope with Moticam BMH4000X 4K Camera Bundle
MoticMOTIC SMZ-171-TLED Trinocular Stereo Microscope with Moticam BMH4000X Camera Bundle
The MOTIC SMZ-171-TLED Trinocular Stereo Microscope with Moticam BMH4000X Camera is an advanced digital microscopy solution designed for biological research, material science, industrial inspection, quality control, and educational applications. Featuring an optically improved Greenough optical system and a continuous 6.7:1 zoom ratio, this microscope delivers clear, detailed stereoscopic images with excellent depth perception.
The microscope features a 0.75X–5X zoom objective system and Widefield N-WF10X/23mm eyepieces, providing a total magnification range of 7.5X–50X. Its trinocular viewing head has a comfortable 45° inclination, adjustable diopters on both eyepieces, and an interpupillary distance adjustment of 52–75mm. The 110mm working distance provides sufficient clearance for handling and examining specimens.
The integrated illumination system includes 3W LED incident and transmitted lighting, both with intensity control. The transmitted illumination features a tilting reflector for oblique illumination, offering additional flexibility when observing different specimen types. The pole-type stand also supports external cold light input for expanded illumination options.
This bundle includes the Moticam BMH4000X digital microscopy camera and a compatible C-mount adapter. The camera features an 8MP sensor, an integrated 11.6-inch Full HD LCD display, and 4K image capture and video recording capabilities. With HDMI, USB, and Wi-Fi 5 connectivity, users can capture, view, record, and manage microscopy images using the onboard software or compatible computer systems.
Key Features
- Complete digital microscope bundle including SMZ-171-TLED trinocular microscope, Moticam BMH4000X camera, and compatible C-mount adapter
- Advanced Greenough optical system for clear stereoscopic imaging
- Trinocular viewing head with 45° inclined observation tubes
- Fixed 50:50 trinocular light split
- Continuous 0.75X–5X zoom magnification range
- 6.7:1 zoom ratio for smooth magnification adjustment
- 7.5X–50X total magnification with standard 10X eyepieces
- Widefield N-WF10X/23mm eyepieces with ±5 diopter adjustment
- 52–75mm adjustable interpupillary distance
- 110mm working distance for convenient specimen handling
- 3W LED incident illumination with intensity control
- 3W LED transmitted illumination with reflector and intensity control
- Tilting reflector for oblique transmitted illumination
- Pole-type stand with transmitted illumination and cold light input
- Coarse focusing mechanism with adjustable tension
- 49mm focusing stroke
- Moticam BMH4000X digital camera with 8MP capture resolution
- Integrated 11.6-inch Full HD LCD display (1920 x 1080)
- 4K image capture and video recording at up to 30fps
- HDMI, USB, and Wi-Fi 5 connectivity
- Onboard camera software for image capture, video recording, measurement, and image adjustments
- Compatible with Motic Images Plus 3.1 software for Windows and Mac OS
- Suitable for biological research, material science, industrial inspection, and quality control
Product Specifications
| Microscope Specifications | |
| Brand | MOTIC |
| Model | SMZ-171-TLED |
| Microscope Type | Trinocular Stereo Zoom Microscope |
| Optical System | Greenough |
| Observation Tube | Trinocular Head |
| Viewing Angle | 45° Inclined |
| Trinocular Light Split | Fixed 50:50 |
| Eyepieces | Widefield N-WF10X/23mm with Diopter Adjustment |
| Diopter Adjustment | ±5 Diopter on Both Eyepieces |
| Interpupillary Distance | 52–75mm |
| Objectives | 0.75X–5X |
| Zoom System | Continuous Zoom, 6.7:1 Ratio |
| Total Magnification | 7.5X–50X with Standard 10X Eyepieces |
| Working Distance | 110mm |
| Focus Mechanism | Coarse Focusing System with Tension Adjustment |
| Focusing Stroke | 49mm |
| Stand Type | Pole-Type Stand with Transmitted Illumination and Cold Light Input |
| Base Dimensions | 303 x 239mm |
| Column / Arm | Height 232mm, Ø32mm |
| Incident Illumination | 3W LED with Intensity Control |
| Transmitted Illumination | 3W LED with Reflector and Intensity Control |
| Illumination Features | Transmitted Light with Tilting Reflector for Oblique Illumination |
| Standard Contrast Technique | Brightfield |
| Darkfield | Optional Add-On |
| Polarization | Optional Add-On |
| Head Holder | For Ø32mm Column and Ø76mm Head |
| Transformer | External |
| Power Supply | 100–240V (CE) |
| Accessories Included | Dust Cover, Black/White and Frosted Stage Plates |
| Dimensions (L x W x H) | 303 x 239 x 405mm |
| Moticam BMH4000X Camera Specifications | |
| Camera Model | Moticam BMH4000X |
| Sensor Size | 1/2.8" |
| Capture Resolution | 8MP |
| Pixel Size | 1.45 x 1.45µm |
| Scan Mode | Progressive |
| Shutter Mode | Rolling Shutter |
| Lens Mount | C-Mount |
| Image Output | HDMI, USB, Wi-Fi 5 |
| Maximum Frame Rate | HDMI: 4K at 30fps (3840 x 2160); USB: 4K at 30fps (3840 x 2160); Wi-Fi: Up to 25fps at 1920 x 1080 and 12fps at 3840 x 2160 |
| Image Capture | JPEG/T |
- Weight:
- 15.00 LBS
- Width:
- 14.00 (in)
- Height:
- 10.00 (in)
- Depth:
- 17.00 (in)
