Meiji EMZ-5 on PKL Stand, 7x - 45x Magnification, LED IlluminationMeiji Techno
- Binocular or trinocular head, rotatable 360°
- Super widefield 10x eyepieces
- 7x to 45x Zoom magnification
- 93mm Working distance
- Ergonomic pole stand
- LED illumination with intensity control
The EMZ-5 body delivers sharp, high-contrast images and an excellent zoom range of 6.5:1 that provides exceptionally high resolution images all throughout the zoom range. The EMZ-5 employs Greenough optics, for improved image flatness and contrast. As a result images are brighter and more distinct even at the periphery of the field of view. With the large zoom range, the EMZ-5 offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to it's compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application.
An ergonomic pole type stand with 5 watt incident LED illumination system, coarse focusing holder, single variable intensity control, reversible white and black stage plate, two stage clips, and power cord. Automatic voltage (100V to 240V) sensing power supply. Optional accessories include a 4" pole extension and mechanical stages.
Included is the MA502 Super Widefield Eyepiece 10x (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0 and Rubber Eyeguards/Eyeshields (Paired).
|Body||Binocular or Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction|
|Zoom Range||0.7x - 4.5x|
|Zoom Knobs Markings||0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5|
|Zoom Control||Dual, graduated, bilateral|
|Magnification||7x - 45x (10x eyepieces)|
|Objective Lens||Brass Construction|
|Field of View||32mm - 5.1mm|
|Eyepieces||10x Super Widefield, Pair.
Optional: 5x, 7.5x, 12.5x, 15x, 20x, 30x
|Interpupillary Distance||54mm - 75mm|
|Dioptric Adjustment||Dual (+/- 5 diopters)|
|Extended Mag Range||2.1x - 270x (With auxiliary lenses and eyepieces)|
|Extended Working Distances||34mm - 251mm (With auxiliary lenses and eyepieces)|
|Auxiliary Lenses||Optional: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), 2x (34mm)|
|Mounting||Fits 84.5mm Diameter Focus Holders|
|Manufacturer||MADE IN JAPAN|
|Warranty||LIMITED LIFETIME WARRANTY|
|MA502||Super Widefield Eyepiece 10X (Paired)(With 25mm reticle mount)|
|PKL-1||An ergonomic pole type stand with 5 watt incident LED illumination system, coarse focusing holder, single variable intensity control, reversible white and black stage plate, two stage clips, and power cord. Automatic voltage (100V to 240V) sensing power supply.|

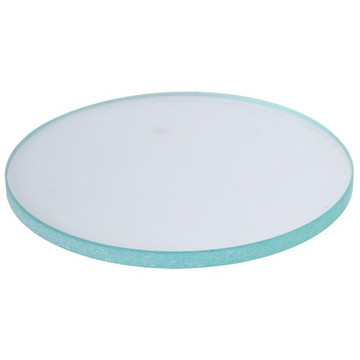

|PKL-2||An ergonomic pole type stand with dual LED illumination system, coarse focusing holder, 5 watt LED incident illumination, dual variable intensity control, removable glass stage plate, two stage clips, and power cord. Transmitted light base features an extremely bright multiple LED array with milk white diffusion plate and clear glass stage plate. Automatic voltage (100V to 240V) sensing power supply.|
- 18.00 LBS
- 20.00 (in)
- 16.00 (in)
- 16.00 (in)
Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you with a Shipping Quote.
If you are dissatisfied with your purchase, let us help you with a replacement, return or repair. Exclusions may apply.
For full details, view our Returns and Exchanges policy.
