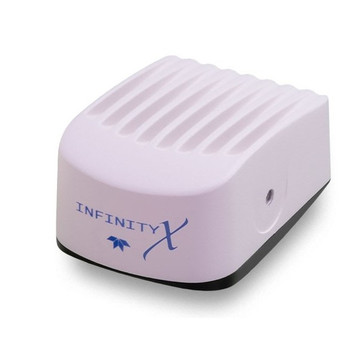

Lumenera INFINITYX-32M Monochrome CCD Camera 32 Megapixels - PC & MAC Compatible

Lumenera Cameras


You may be interested in:

Non-Cancelable, Non-Returnable
Current Stock:

The INFINITYX-32 offers incredible flexibility in capturing images at 2, 8, 16 and 32 megapixel resolution. Using the patented DeltaVu™ technology, each CCD pixel captures full chromatic information, resulting in increased color resolution with no degradation. The INFINITYX-32 is the fist pixel shifting camera to utilize the highly sensitive SONY ICX274 sensor. The relatively low cost of the INFINITYX-32 makes it an affordable tool for clinical, life and material sciences where megapixel resolution, color accuracy, and light sensitivity are essential.

Live video preview provides for real-time focus, while auto exposure and auto white balance help efficiently capture your optimal image. Software control provides exposures from 67us through to 2 seconds.

An intuitive user application provides camera control, while full integration to popular third-party imaging applications is available through our TWAIN drivers.

The USB digital interface ensures a simple plug-and-play installation - and one standard cable minimizes camera clutter. No framegrabber is required.

The INFINITYX-32 includes INFINITY ANALYZE software for advanced camera control, image processing, measurement and annotation. An Advanced Features USB-Key is required to unlock the two Advanced Features (Multi-Focus Composition & Spherical Aberration Correction) which otherwise run in demo mode only.


  • Highest possible quality of color reproduction
  • 32 megapixel resolution is achieved through shifting a color or monochrome sensor with a 1616 x 1216 pixel array
  • Users will have the flexibility of choosing between 2, 8, 16 and 32 megapixel resolution on capture, taking full advantage of their microscope optics
  • Highly sensitive, low noise CCD with remarkable color quality for the most demanding applications
  • Full color sub-windowing allows for rapid focus and scanning of samples: 12 fps at full 1616 x 1216 resolution, 25 fps at smaller regions of interest
  • 8 / 12-bit selectable output format
  • The RGB data captured through each pixel contains 36-bits of color image information resulting in 4096 intensity values per color
  • Camera control through INFINITY CAPTURE, an intuitive user interface, resulting in rapid image capture, archiving and documentation for high throughput applications
  • INFINITY ANALYZE software for advanced camera control, image processing, measurement, annotation and archiving
  • Easy and flexible installation on your PC through a standard, high-speed USB 2.0 interface
  • Software compatible with Windows 10, 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.

Optional Upgrade: INFINITY Advantage Pack 2 Includes

  • INFINITY ANALYZE USB Key - enables you to use your INFINITY ANALYZE software on any Windows computer with the USB key in place. Simply download the software and insert the USB key for complete access to all its features.
  • Advanced Hardware Replacement - No downtime waiting for your camera to ship and be repaired in the unlikely event that your hardware fails.
  • INFINITY Extended Care - Extends the standard warranty from 2 to 5 years for INFINITY camera hardware.
  • Spherical Aberration Correction - reduces the blur caused by the increased refraction of light rays hitting the lens near its edge. The final image closely resembles the areas where the light strikes near the center, resulting in crisp and clear images.
  • Multi-Focus Composition - creates depth of focus using multiple images from a stereo or compound microscope. The resulting image is focused from top to bottom with seamless transitions.
  • IMAGE-PRO Premier Software Trial - FREE 9 month trial version of Media Cybernetics image analysis software.


  • AU-X-32M - 32 Megapixel Monochrome Pixel Shifting Camera - Same as INFINITYX-32M & Meiji CC3200M

Product Specifications

Camera Sensor
Image Sensor 1/1.8" format, Monochrome
Effective Pixels 1616 x 1216, 4.4µm square pixels
Frame Rate 12 fps at 1616 x 1216, 25 fps at 640 x 480
Digital Output 8 and 10-bit uncompressed
Dark Current (e-/s) 12 e-
Dynamic Range >66dB
Camera Controls
Integration Time 67ms to 2 sec.
Shutter Global electronic shutter
Auto Exposure Automatic / Manual
White Balance Automatic / Manual
Gain 1 to 10x programmable
Lens Mount Adjustable C-Mount lens adapter
Operational Specs
Dimensions (L x W x H) 3.85 x 2.00 x 2.75 inches
Mass 300g
Power Requirement External 5VDC - 2.5A
Power Consumption ~2.5Watts
Operating Temperature 0°C to +50°C
Operating Humidity 5-95%, Non-condensing
Digital Video Resolution
Digital Video Frame Rate
1616 x 1216 / 12 frames per second
1280 x 1024 / 14 frames per second
808 x 608 / 21 frames per second
640 x 480 / 25 frames per second
Digital Still Image 1616 x 1216 / 2.0 million pixels 24 bit RGB: 5.6 MB
3232 x 2432 / 8.0 million pixels 24 bit RGB: 22 MB
4848 x 3648 / 16.0 million pixels 24 bit RGB: 50 MB
6464 x 4864 / 32.0 million pixels 24 bit RGB: 90 MB
Computer Interface
Data Interface High-Speed USB 2.0
Cable Standard USB 2.0
Application Interface Intuitive User Application
Application Support TWAIN for 3rd party integration
Warranty Three (3) year

Computer Requirements:

  • Pentium 4, 1.3 GHz or higher
  • 512 MB RAM
  • 60 MB hard drive free space or more
  • USB 2.0 Port
  • Windows 10, 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.

Minimum PC Requirements:

  • 600 MHz Processor
  • 256 MB of SDRAM
  • 20 MB hard drive free space
  • USB 2.0 Port
  • Windows 98 or ME with a USB 2.0 Add-in card and driver


  • INFINITYX-32 digital camera for USB 2.0
  • CD-ROM with INFINITY user application software
  • TWAIN driver
  • Documentation
  • USB 2.0 cable
  • Power supply with international adaptors
