ACCU-SCOPE EXC-121-PL Monocular LED Microscope with Plan Objectives, 1000x Magnification

SKU:
AEXC-121-PL
$685.00
$816.00
(You save $131.00 )
(No reviews yet)
  • Monocular head, 360° rotatable
  • WF 10x/18.5mm eyepiece with pointer
  • 4x, 10x, 40x, 100x (oil) Plan objectives
  • LED illumination with variable control
  • 5 Year limited warranty
Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

ACCU-SCOPE's EXC-120 Monocular Microscope has been engineered to deliver exceptional value and performance for clinical and educational applications. The microscope comes equipped with sharp, high contrast Plan Achromat objective and features ergonomic focusing controls, all brass gears and the widest field of view eyepieces in its class. The rugged, die-cast aluminum frame is designed for years of heavy use and is excellent for classroom use.

  • The ergonomic design allows maximum comfort for extended viewing periods.
  • The rackless mechanical stage and one hand slide control simplify use.
  • Integrated carry handle and convenient cord hanger on back.
  • LED illumination provides superb brightness and energy savings.

Product Specifications

Optical System DIN Optical System, f=160mm, Anti-Mold
Viewing Head Monocular; Inclined 30° and rotatable 360°
Eyepieces WF10x/18.5mm field of view, with pointer eyepiece is locked-in to prevent classroom tampering and accept 19mm reticles
Nosepiece Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration

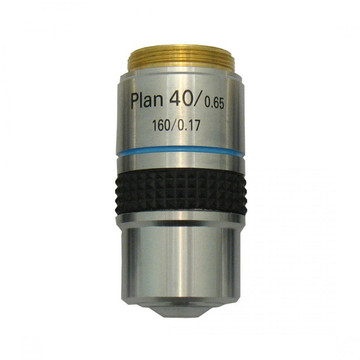

Objectives Plan Achromat 4x, 10x, 40xR* and 100xR oil* - (*spring-loaded).
Stage Rackless Mechanical Stage; size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm
Condenser N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder
Stand Cast alloy aluminum; built-in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
Illumination Variable LED illumination; bulb life rated for 20,000 hours; UL approve
Focusing System Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears
Accessories Dust cover, immersion oil and instruction manual included
Dimensions (LWH) 255mm x 198mm x 368mm
Warranty 5-year limited warranty for parts, labor, and electronic components
1-year warranty for LED bulb.
Free Microscope Service Protection
Certification ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold
