UNITRON 22005 enVision AF HD Autofocus Digital Microscope on Boom Stand – 1x–14x Optical Zoom
UNITRONApplications
- Electronics and PCB inspection
- Industrial component inspection
- Manufacturing quality control
- Precision assembly and rework
- Image documentation and measurement

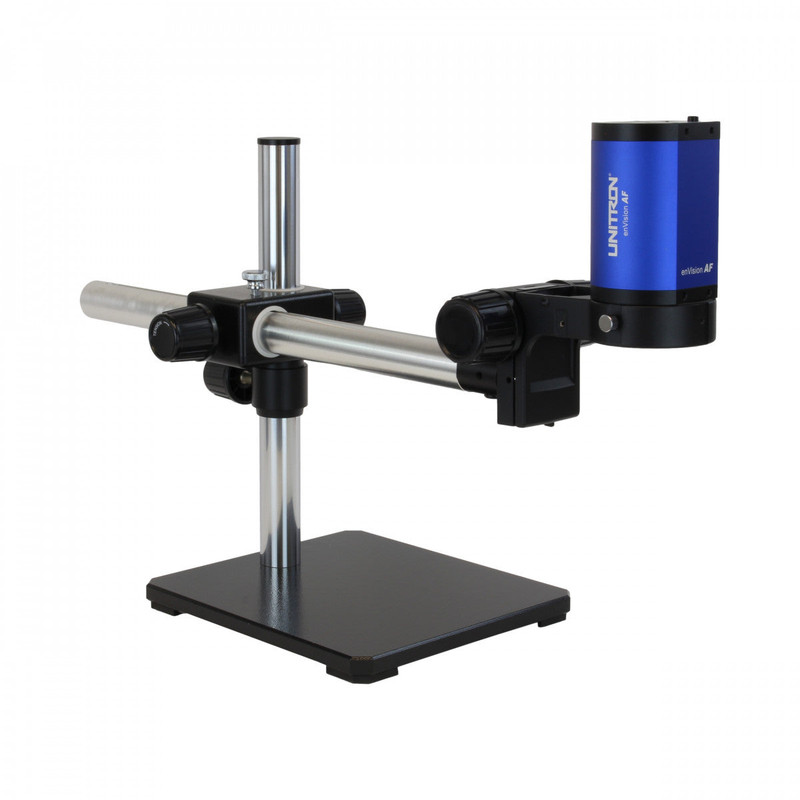

UNITRON 22005 enVision AF HD Autofocus Digital Microscope on Boom Stand
The UNITRON 22005 enVision AF is a high-definition digital autofocus microscope designed for detailed inspection, image capture, and measurement. It delivers Full HD 1080p live imaging at 60fps with continuous 1x–14x optical zoom and fast autofocus.
Its built-in software supports image capture and processing, calibration, measurement, and annotation without requiring a PC for basic operation. The included boom stand with bonder arm and focus mount provides flexible positioning for inspecting larger samples and working across a wider area.
Key Features
- Full HD 1080p live imaging (1920 x 1080)
- Continuous 1x–14x optical zoom
- 1x–6x digital magnification
- 60fps video frame rate
- Fast autofocus
- Built-in software for image capture, processing, calibration, and measurement
- Live measurement and annotation tools
- Gallery for reviewing saved images and videos
- HDMI output for live video streaming to an external monitor
- USB flash drive support for image storage
- LAN Ethernet data transfer to a Windows PC
- Ø76mm mounting ring compatible with boom, pole, and flex arm stands with standard focus mounts
- Includes boom stand with bonder arm and focus mount
- Working distance from 10cm to infinity
Product Specifications
| Brand | UNITRON |
| Model | 22005 enVision AF |
| Microscope Type | HD Digital Autofocus Microscope |
| Image Sensor | Sony EXMOR CMOS, Color |
| Sensor Size | 1/2.8" |
| Pixel Size | 2.9µm |
| Resolution | 2MP, Full HD 1080p (1920 x 1080) |
| Frame Rate | 60fps at 1920 x 1080 |
| Optical Zoom | 1x–14x |
| Digital Magnification | 1x–6x |
| Working Distance | 10cm to Infinity |
| Field of View at 100mm | 1x: 171 x 92mm; 14x: 24.3 x 13.5mm |
| Field of View at 300mm | 1x: 420 x 230mm; 14x: 45.5 x 25mm |
| Camera Controls | Contrast, Auto/Manual Exposure, Auto/Manual White Balance |
| Autofocus Controls | Zoom, Autofocus, One Push, Manual Focus, Reset |
| Measurement Tools | Calibration, Measurement, Scale, Templates |
| Connectivity | HDMI, LAN Ethernet, USB Flash Drive, Wireless USB Mouse |
| PC Software | enVision for Windows via LAN/Ethernet |
| Stand | Boom Stand |
| Stand Accessories | Bonder Arm and Focus Mount |
| Mounting Ring | Ø76mm |
| Power Supply | DC 12V, 1A Adapter Included |
| Monitor | User-Supplied HDMI Monitor Required |
| Catalog Number | 22005 |
- Weight:
- 42.00 LBS
- Width:
- 24.00 (in)
- Height:
- 12.00 (in)
- Depth:
- 14.00 (in)
