UNITRON 22004-LP enVision AF HD Autofocus Digital Microscope on Pole Stand – 1x–14x Optical Zoom
UNITRONApplications
- Industrial inspection and quality control
- Electronics and PCB inspection
- Manufacturing component inspection
- Precision assembly and rework
- Sample measurement and documentation
- Research and laboratory inspection

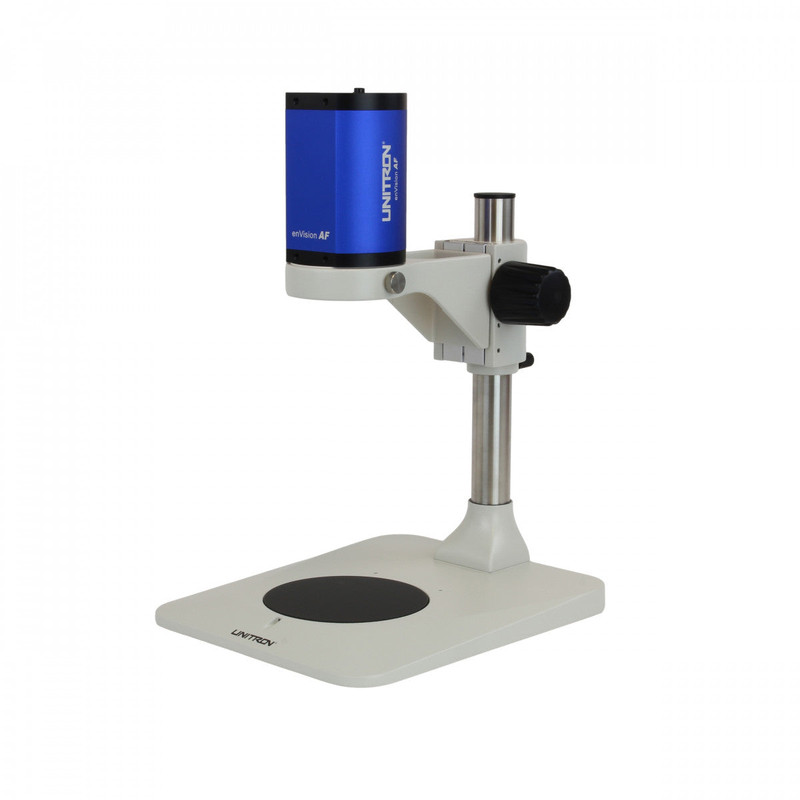

UNITRON 22004-LP enVision AF HD Autofocus Digital Microscope on Pole Stand
The UNITRON 22004-LP enVision AF is an autofocus digital microscope designed for convenient, high-definition inspection and documentation. It delivers Full HD 1080p live images at 60fps and features continuous 1x–14x optical zoom, fast autofocus, and an extended working distance from 10cm to infinity.
Its built-in software supports standalone operation without a PC, allowing users to capture images and videos, calibrate, measure, and annotate samples using the included wireless mouse. HDMI output provides live viewing on a compatible monitor, while LAN Ethernet connectivity enables expanded control and image analysis through the enVision PC software.
Key Features
- Full HD 1080p digital imaging with 2MP resolution
- Continuous 1x–14x optical zoom and 1x–6x digital magnification
- 60fps live video at 1920 x 1080 resolution
- Fast autofocus for convenient inspection
- Extended working distance from 10cm to infinity
- Built-in software for standalone image capture, video recording, calibration, and measurement
- Live measurement, scale, templates, and annotation tools
- HDMI output for live viewing on an external monitor
- LAN Ethernet connection for Windows PC software
- Includes pole stand with 390mm tall pole and focus mount
Product Specifications
| Brand | UNITRON |
| Catalog Number | 22004-LP |
| Series | enVision AF |
| Sensor | Sony EXMOR CMOS, Color |
| Sensor Size | 1/2.8" |
| Pixel Size | 2.9µm |
| Resolution | 2MP, HD 1080p (1920 x 1080) |
| Frame Rate | 60fps at 1920 x 1080 (HDMI, Ethernet) |
| Optical Zoom | 1x–14x |
| Digital Magnification | 1x–6x |
| Working Distance | 10cm to Infinity |
| Field of View at 100mm | 1x: 171 x 92mm; 14x: 24.3 x 13.5mm |
| Field of View at 300mm | 1x: 420 x 230mm; 14x: 45.5 x 25mm |
| Camera Controls | Contrast, Automatic/Manual Exposure, Automatic/Manual White Balance |
| Measurement Tools | Calibration, Measurement, Scale, Templates |
| Autofocus Controls | Zoom, Autofocus, One Push, Manual Focus, Reset |
| Connectivity | HDMI, USB, LAN/Ethernet |
| PC Software | enVision for Windows 7, 8, and 10 (64-bit recommended) |
| Stand | Pole Stand with Focus Mount |
| Pole Height | 390mm |
| Mounting | Ø76mm Mounting Ring, 2 x M4 Holes, 1 x 1/4-20 Threaded Hole |
| Power Supply | DC 12V 1A Adapter |
- Weight:
- 12.00 LBS
- Width:
- 8.39 (in)
- Height:
- 15.35 (in)
- Depth:
- 10.31 (in)
