OPTIKA C-HAF 1080p Full HD Stand-Alone Real Time Autofocus Camera, 2 Megapixel

SKU:
OPC-HAF
$3,648.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

OPTIKA C-HAF is a real-time full HD auto-focus inspection camera, with 2 MP resolution to view crystal clear 1080p images/videos on HD monitor, through HDMI connection at 60 fps. Its angle of view is fully adjustable.

Achieve instant focus without the need to constantly adjust your lens with the incredibly fast focusing system (acquisition time is lower than 1 sec.) without the inconvenience of having to constantly re-adjust the lens focus. Working distance is between 10cm and infinity, making it the ideal solution to inspect multi-layered objects, extremely quickly.

The camera is equipped with 1x-14x optical zoom and 1x-6x electronic zoom. All functions are controlled directly from the screen, with the support of mouse, and images and videos can be directly acquired on SD card (mouse and SD card are included).

Main functions:

  • Possibility to perform automatic or manual white balance, independently setting RGB parameters for a perfect color reproduction
  • Choose between automatic or manual exposure
  • With HDR function, a sequence of images is captured at different exposures, and they are combined into a single image
  • Trigger function allows the connection with an external controller and the file acquisition is possible with a determined sequence
  • Possibility to set horizontal and vertical lines, in different colors and positions, to generate a custom grid directly on the HDMI screen

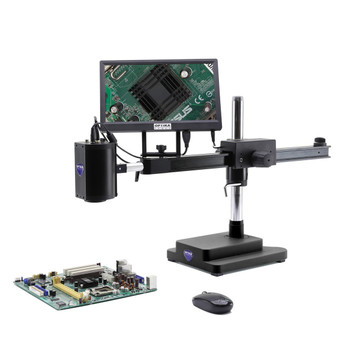

OPTIKA C-HAF comes with fixing holes to be connected with "custom" supports or brackets. It is also available combined with a boom stand (as IS-02) or a compact stand with table clamp or wall-mount (as IS-03).

Camera Specifications
Stand alone use Yes
HDMI Camera resolution (MP) 2
Camera resolution (n° of pixels: W x H) 1920x1080
HDMI Signal output Yes
Trigger Signal output Yes
Color / Monochrome Color
Sensor Size 1/2.8"
Sensor Technology CMOS
Sensor Type SONY EXMOR
Optical Zoom 1x-14x
Digital Zoom 1x-6x
Rolling Shutter Yes
Autofocus Yes
Image Format 16/9
Pixel Size (mm) 2.9x2.9
Frame rate full resolution (fps) 60@1920x1080
G sensitivity 1300mV at 1/30sec
Dark Signal 0.34mV at 1/30sec
ADC conversion 8 Bit
Color Depth 8 Bit
Exposure time Auto
Binning 1x1
IR filter Yes
Cooling Temperature None
Camera Power 5V 2A
Dimensions (mm) 88 x 72 x 125
Weight (Kg) 0.57
Accessories
HDMI cable 2m
Wireless Mouse Yes
SD card 16GB
General Specifications
Working temperature -10 up to +50°C
Storage temperature -20 up to +60°C
Relative Humidity 30% up to 80%
Storage Humidity 10% to 60%
