Motic PSM-1000 Standard System – Laser-Ready Trinocular Industrial Microscope
MoticMotic PSM-1000 Standard System – Laser-Ready Modular Industrial Microscope
The Motic PSM-1000 Standard System is a modular, laser-ready industrial microscope designed for high-resolution inspection of flat, reflective specimens. It is well suited for applications in metallurgy, semiconductor manufacturing, laser inspection, repair, and advanced materials research.
Its specialized optical system supports near-ultraviolet, visible, and near-infrared wavelengths, covering laser applications from 355nm to 1064nm. The three-lens changeover turret provides 1X UV/VIS, 1X IR/VIS, and 2X visible magnification settings, allowing users to switch between visual observation and laser work.
The trinocular Siedentopf observation head provides an erect, true-sided image and a wide WF10X/24mm field of view. The adjustable optical path supports 50:50 simultaneous observation or 0:100 laser transmission, helping accommodate different inspection and laser integration workflows.
The standard system includes a coaxial coarse and fine focusing mechanism with a 50mm focusing stroke and 1µm minimum focus increment. Its forward-facing quadruple nosepiece provides four centerable objective positions. Objectives and the microscope stand are optional and should be selected according to the intended application.
Key Features
- Laser-ready modular microscope for industrial inspection and research
- Supports laser wavelengths from 355nm UV to 1064nm IR
- Specialized optics for near-ultraviolet, visible, and near-infrared applications
- Trinocular Siedentopf head with an erect, true-sided image
- Three-lens changeover turret with 1X UV/VIS, 1X IR/VIS, and 2X visible settings
- Switchable 50:50 observation and 0:100 laser optical path
- Widefield WF10X/24mm eyepieces with diopter adjustment
- Quadruple nosepiece with individually centerable positions
- 50mm focusing stroke with 1µm minimum increment
- Fiber-optic coaxial illumination port
- Laser safety kit, shims, and laser safety pin included
Product Specifications
| Brand | Motic |
| Model | PSM-1000 Standard System |
| Microscope Type | Laser-ready modular industrial microscope |
| Observation Head | Trinocular, Siedentopf type |
| Head Inclination | 30° inclined |
| Interpupillary Distance | 55–75mm |
| Diopter Adjustment | ±5 diopter on both eyepieces |
| Eyepieces | Widefield WF10X/24mm |
| Optical System | Specialized optics covering NUV, visible, and NIR spectrums |
| Intermediate Body | 3-lens changeover turret: 1X UV/VIS, 1X IR/VIS, and 2X |
| Laser Wavelength Range | 355nm UV, 532nm Green, and 1064nm IR |
| Trinocular Light Split | 50:50 / 0:100 |
| Nosepiece | Quadruple, single centerable positions |

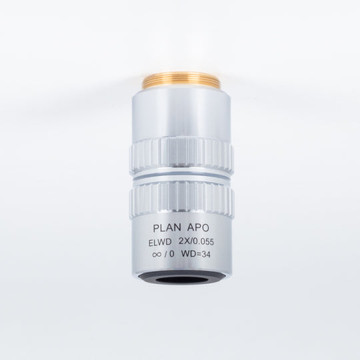

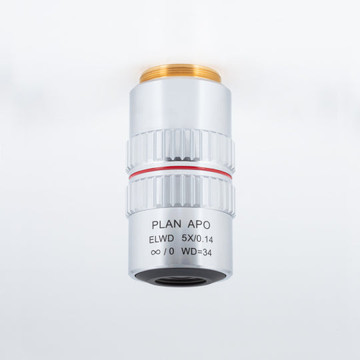

| Objective Classification | Extra-long working distance Plan Apochromatic |
| Objectives | Optional; not included as standard |
| Objective Mounting Thread | M26 × 0.706 |
| Stand Type | Optional |
| Focus Mechanism | Coaxial coarse and fine focusing with tension adjustment |
| Fine Focus Precision | 1µm minimum increment |
| Focusing Stroke | 50mm |
| Incident Illumination | Port for fiber-optic coaxial illumination |
| Standard Contrast Technique | Brightfield |
| Polarization | Optional sliders |
| Included Accessories | Laser safety kit, shims, and laser safety pin |
- Weight:
- 26.00 LBS
- Width:
- 18.00 (in)
- Height:
- 16.00 (in)
- Depth:
- 22.00 (in)
