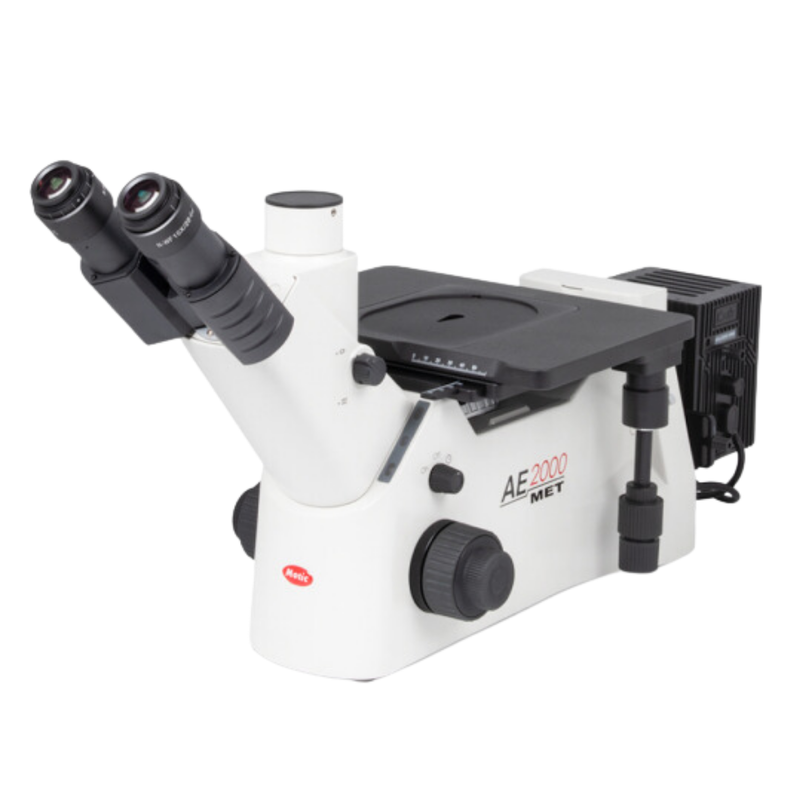

Motic AE2000MET Trinocular 100W Inverted Metallurgical Microscope
MoticMotic AE2000MET Trinocular 100W Inverted Metallurgical Microscope
The Motic AE2000MET is an inverted metallurgical microscope designed for examining large and bulky samples, including metals, minerals, precision molds, and die-cast components. Its inverted configuration makes it suitable for materials research, industrial inspection, failure analysis, and quality control.
This configuration features a trinocular viewing head and 12V/100W Koehler halogen illumination with an external lamphouse. Objectives are not included, allowing users to select compatible objectives according to their inspection requirements.
Key Features
- Inverted metallurgical microscope for large and bulky samples
- Colour Corrected Infinity Optical System (CCIS)
- 45° inclined, 360° swiveling trinocular Siedentopf head
- 100:0 / 20:80 trinocular light split
- Side-facing quintuple nosepiece
- Mechanical stage with low-position coaxial controls
- 12V/100W Koehler halogen illumination
- External lamphouse with intensity control
- Coaxial coarse and fine focusing with tension adjustment
- Objectives are not included
Product Specifications
| Model | AE2000MET Trinocular 100W |
| Optical System | Colour Corrected Infinity Optical System (CCIS) |
| Microscope Type | Inverted Metallurgical Microscope |
| Observation Head | Trinocular Siedentopf, 360° swiveling |
| Head Inclination | 45° |
| Trinocular Light Split | 100:0 / 20:80 |
| Interpupillary Distance | 48–75mm |
| Diopter Adjustment | ±5 diopter on both eyepieces |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
| Nosepiece | Side-facing quintuple |
| Objective Mounting Thread | M32 |
| Objectives | Not included |
| Stand Type | Inverted |
| Stage | Hard-coated mechanical stage with built-in low-position coaxial controls, round and oval inserts |
| Stage Size | 280 × 192mm |
| X-Y Travel Range | 50 × 50mm |
| Focusing Mechanism | Coaxial coarse and fine focusing with tension adjustment |
| Fine Focus Precision | 2µm |
| Focusing Stroke | 10mm |
| Illumination | Koehler quartz halogen, 12V/100W |
| Lamphouse | External |
| Illumination Control | Intensity control |
| Illumination Feature | Sleep mode |
| Transformer | External |
| Power Supply | 100–240V |
| Standard Contrast Technique | Brightfield |
| Darkfield | Optional objectives |
| Polarization | Optional sliders |
- Weight:
- 46.00 LBS
- Width:
- 27.00 (in)
- Height:
- 14.00 (in)
- Depth:
- 28.00 (in)
