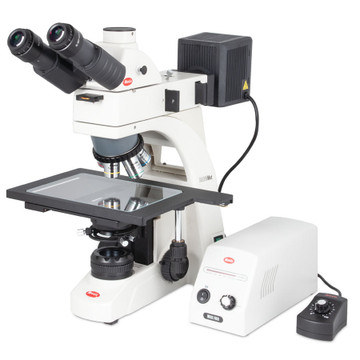

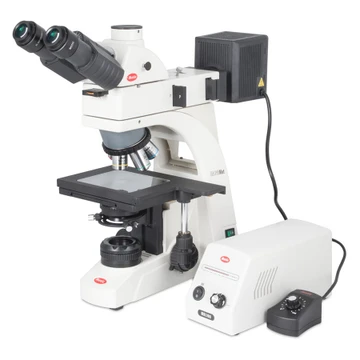

Motic BA310MET - Trinocular

Motic BA310MET - Trinocular

Motic
SKU:
MOT-402045-IP-1026
$5,209.00
Non-Cancelable, Non-Returnable
Current Stock:
Adding to cart… The item has been added
Accessory Products
Description

With the BA310MET, industrial quality control can be performed for all opaque materials like minerals and metal samples with ease and efficiency. The BA310MET also performs well in educational environments for engineering and material professions, where affordability and ease-of-use are the key demands.

Descriptions

BA310MET Series - Advanced Microscopes for Material Sciences

Great flexibility for all sample sizes

BA310MET and BA310MET-T are based on a regular upright microscope with fixed nosepiece and movable stage, while in BA310MET-H the Epi-Illumination including optics is combined with a focusing block mounted on a vertical pole. Thus an extended focusing range for the examination of bulky samples is achieved.

New LM Plan Achromats for incident light

A new generation of LM Plan-Achromatic objectives dedicated to non-covered specimen. Made of high quality glass, these LWD objectives follow the successful Motic CCIS® optical concept and ensure improved contrast and image quality by multi-layer coating.

Flexibility for compound materials

The Epi-Illuminator of the BA310MET models is based on a 50W Halogen light source with external power supply. With an adjustable field and aperture diaphragm, homogenous illumination and improved contrast are guaranteed. The simple polarization set enables a useful "POL contrast" and helps to minimize reflections especially in low power objectives.

Specifications
Model BA310 MET Binocular BA310 MET Trinocular
Observation tube Binocular head, Siedentopf type, 360° swiveling Trinocular head, Siedentopf type, 360° swiveling
Optical system Colour Corrected Infinity Optical System (CCIS®) Colour Corrected Infinity Optical System (CCIS®)
Diopter adjustment On both eyepieces, +/- 5 diopter On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment Widefield N-WF10X/20mm with diopter adjustment
Fine focus precision 2µm 2µm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment
Focusing stroke 30mm 30mm
Illumination features External lamp house for Epi-illuminator External lamp house for Epi-illuminator
Illumination interchangeability Quartz halogen 12V/50W or LED 3W Quartz halogen 12V/50W or LED 3W
Incident illumination Quartz halogen 12V/50W with integrated field and aperture diaphragms Quartz halogen 12V/50W with integrated field and aperture diaphragms
Inclination 30° inclined 30° inclined
Interpupillary distance 48-75mm 48-75mm
Nosepiece Reversed quintuple Reversed quintuple
Objective classification CCIS® EC Plan Achromatic, DIN CCIS® EC Plan Achromatic, DIN
Objective mounting thread W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard)
Objectives 5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm) 5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)
Polarization Optional sliders Optional sliders
Stage Mechanical stage, hard coated with built-in low position coaxial stage control Mechanical stage, hard coated with built-in low position coaxial stage control
Stage size 180x140mm 180x140mm
Stand type Upright Upright
Standard contrast technique Brightfield Brightfield
Travel range X&Y 75x50mm 75x50mm
Upper limit stop Upper limit stop preset but adjustable Upper limit stop preset but adjustable
Transformer External External
Power supply 100-240V (CE) 100-240V (CE)
Accessories included Dust cover, power cord, Allen key Dust cover, power cord, Allen key
Dimensions LxWxH 508x240x465mm 508x240x465mm
Weight Net 12.5kg 12.7kg
Downloads
Catalog
Specifications - BA310MET Binocular
Specifications - BA310MET Trinocular
Instructions

Motic Part Number: 1100100402045
