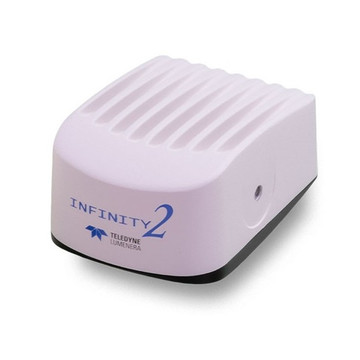

Lumenera INFINITY2-1RM Monochrome CCD Camera 1.4 Megapixels - PC & MAC Compatible

Lumenera INFINITY2-1RM Monochrome CCD Camera 1.4 Megapixels - PC & MAC Compatible

Lumenera Cameras
SKU:
AU-140RM-CCD
$52,270.18
Non-Cancelable, Non-Returnable
Current Stock:
Adding to cart… The item has been added
Accessory Products
Description

The newly engineered INFINITY2-1R scientific camera offers a significant performance increase for quantitative and low-light applications including Darkfield and Fluorescence Microscopy. Reduced operating temperatures combined with a much higher dynamic range and 14-bit output have resulted in a versatile entry-level research camera. The INFINITY2-1R easily manages seconds of exposure time with a dark current rating of less than 1 e-/s.

INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering; camera control, measurement, annotation, tiling and post capture enhancement, are both included. Camera and software are combined to create a complete microscopy imaging solution for your application. An Advanced Features USB-Key is required to unlock the two Advanced Features (Multi-Focus Composition & Spherical Aberration Correction) which otherwise run in demo mode only.

Features:

  • Improved noise performance over the first generation camera
  • Incredibly low dark current noise in an uncooled camera
  • High dynamic range of 64 dB
  • Low noise progressive scan 1/2" 1.4 megapixel Sony ICX205 CCD sensor
  • Full color sub-windowing allows for rapid focus and scanning of samples; up to 22 fps at 640 x 480 resolution
  • 8 or 14-bit pixel data modes
  • Includes TWAIN and DirectX / Direct Show support
  • Software compatible with Windows 10, 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems

Optional Upgrade: INFINITY Advantage Pack 1 Includes

  • INFINITY ANALYZE USB Key - enables you to use your INFINITY ANALYZE software on any Windows computer with the USB key in place. Simply download the software and insert the USB key for complete access to all its features.
  • Advanced Hardware Replacement - No downtime waiting for your camera to ship and be repaired in the unlikely event that your hardware fails.
  • INFINITY Extended Care - Extends the standard warranty from 2 to 5 years for INFINITY camera hardware.

Model:

  • AU-140RM-CCD - 1.4 Megapixel Monochrome CCD Camera - Same as INFINITY2-1RM & Meiji CC2100M

NDAA Compliant.

Product Specifications

Camera Sensor
Image Sensor 1/2" Interline Sony ICX205 1.4 megapixel Monochrome progressive scan CCD sensor 7.6mm x 6.2mm array
Effective Pixels 1392 x 1040, 4.65μm square pixels
Frame Rate 15 fps at 1392 x 1040, 22 fps at 640 x 480 (ROI)
Dynamic Range 64.6 dB
Digital Output 8 and 14-bit
Read Noise 8.5 e-
Dark Current Noise < 1 e-/s at 22°C
Dimensions (W x H x D) 2.25 x 3.85 x 1.56 inch (enclosed)
57.15 x 97.79 x 39.624 mm
Camera Controls
Mass 340 g
Power Requirement USB bus power (external 5 V DC, 500 mA)
Power Consumption ~2.5 W
Operating Temperature 0 to +50°C
Operating Humidity 5 to 95%, non-condensing
Exposure Range 48 μs to 500 ms (video), 5.4 μs to 8 min (snapshot)
Shutter Electronic global shutter
ROI Any multiple of 8 x 8 pixels, 120 x 120 pixels minimum
Exposure Control Manual and automatic
White Balance Manual and automatic
Gain Range 0.5 to 15 x
Interface Connector Standard USB 2.0 high-speed interface
Sensitivity 2.5 DN/(nJ/cm2) [at 8-bit, 1 x gains]
Full Well Capacity 14,500 e-
Lens Mount Adjustable C-mount standard
Warranty Three (3) year

Computer Requirements:

  • Pentium 4, 1.3 GHz or higher
  • 512 MB RAM
  • 60 MB hard drive free space or more
  • USB 2.0 Port
  • Windows 10, 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems

Minimum PC Requirements:

  • 600 MHz Processor
  • 256 MB of SDRAM
  • 20 MB hard drive free space
  • USB 2.0 Port
  • Windows 98 or ME with a USB 2.0 Add-in card and driver

Includes:

  • INFINITY2-1R digital camera for USB 2.0
  • DVD with INFINITY user application software
  • TWAIN driver
  • Documentation
  • USB 2.0 cable
