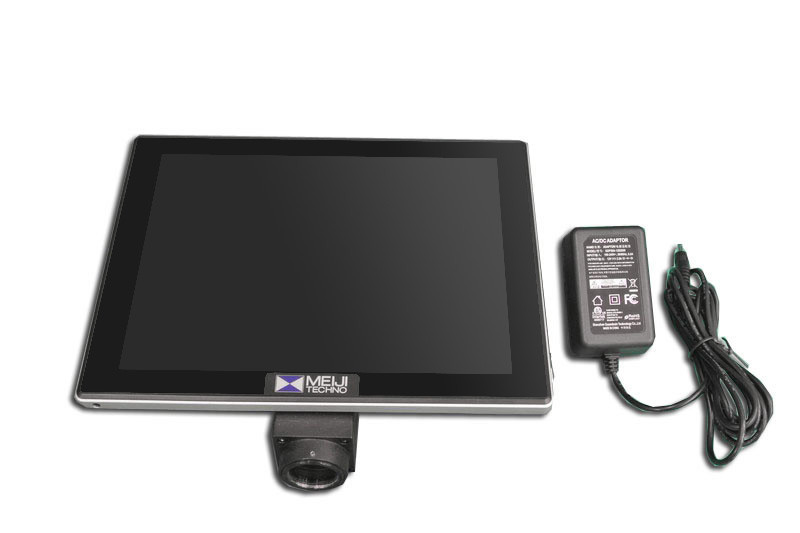

HD750-MTS - 5.0 MP Camera with 9.7" High Resolution Touch Screen Monitor, HDMI and USB output, 30fps
Meiji Techno
¥149,218.70
Write a Review
Meiji Techno
HD750-MTS - 5.0 MP Camera with 9.7" High Resolution Touch Screen Monitor, HDMI and USB output, 30fps
Meiji Techno America's Tablet Camera Series is an all-in-one solution featuring USB, SD card, Wi-Fi mouse support, and an HD screen display. This C-mount tablet camera features a high-sensitivity CMOS sensor and offers the following features:
- CNC precision-machined shell.
- Built-in image capture and video recording to a memory card.
- Built-in camera control panel with manual/automatic exposure, gain, lockable white balance, color adjustment, sharpness, and easy-to-use controls.
- Built-in toolbar with measurement, crosshair, and browser functions.
- Built-in image and video browsing, display, and playback.
- Ultra-fine color engine for excellent color reproduction via USB.
- Supports a Wi-Fi mouse.
Specifications
| Model Name | HD750-MTS |
| Category | 9.7-inch all-in-one monitor with touchscreen display and Android system |
| Display Resolution | 2048 (H) × 1536 (V) |
| Sensor Size | 1/2.5 inch |
| Effective Pixels on Camera System | 5.0 MP |
| Output Interface | USB 2.0, HDMI, TF Card, Wi-Fi |
| Pixel Size | 2.8 µm × 2.8 µm |
| Power | DC 12V |
| UI Desktop | Wi-Fi mouse operation with user-friendly settings |
| Indication Function | Point coordinates, cross-line coordinates, and text notes |
| Measurement | Line length, curve length, parallel line distance, and point-to-line distance |
| Geometric Measurement | Circle radius, two-circle measurement, three-point circle, and concentric circle |
| Geometric Area | Polygon and square area measurement |
| Snapshot | Supports 5-megapixel still image capture |
| Video | Supports 1080P video recording |
| System | S-eye software |
Other Models and Specifications
| Model | Category | Resolution / Display | Pixel Size | Frame Rate | HDMI | USB | Memory Card |
|---|---|---|---|---|---|---|---|
| HD520-M | High-definition video with smart screen | 9.0-inch Full HD screen | 2.75 µm × 2.75 µm | 30 fps | No | Yes | TF |
| HD620-M | High-definition video with smart screen | 11.6-inch Full HD screen | 2.75 µm × 2.75 µm | 60 fps | Yes | Yes | SD |
| HD750-MTS | Android smart industrial camera | 9.7-inch Android touchscreen, 5 MP | 2.8 µm × 2.8 µm | 30 fps | Yes | Yes | TF |
| HD816-MTS | Windows 10 smart industrial camera | 11.6-inch screen, 16 MP | 2.8 µm × 2.8 µm | 30 fps | Yes | Yes | TF |
