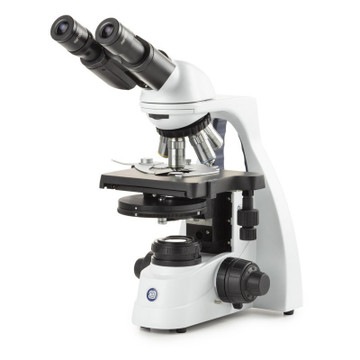

Euromex bScope Phase Contrast Microscope - E-Plan Phase Objectives - BinocularEuromex
|Viewing Head||Siedentopf type head, 360° rotatable, 30° inclined Ã˜ 23.2 mm tubes. Interpupillary distance is adjustable between 48 to 76 mm. Diopter ±5 adjustment on the left eyepiece.|
|Eyepieces||High wide field HWF 10x/20 mm secured eyepiece(s)|
|Nosepiece||Revolving and reversed ball-beared quadruple nosepiece.|
|Objectives||E-plan Phase 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. S40x and S100x oil immersion objectives are spring-loaded. Optics are anti-fungus treated and anti-reflection coated for maximum light throughput.|
|Stage||152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage. Vernier scale, soft-close removable specimen holder, scratch-resistant.|
|Focusing||Coaxial coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 0.2mm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. Coarse adjustment is equipped with friction control.|
|Condenser||Height adjustable Zernike condenser N.A. 1.25 with iris diaphragm, swing-out filter holder, and BF position for brightfield contrast.|
|Illumination||3 W NeoLED„¢ illumination. Internal power supply 100-240 V (CE).|
|Package Contents||Green filter, alignment telescope, power cord, dust cover, tools, spare fuse, user manual, 5 ml immersion oil.|
|Warranty||10 Years Warranty|
- 22.00 LBS
