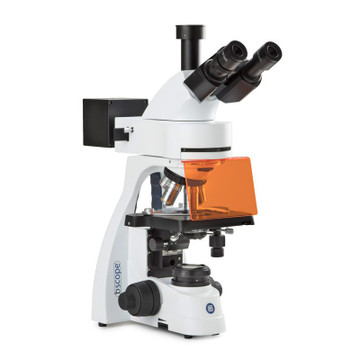

Euromex bScope Epi-Fluorescence HBO Microscope - E-Plan IOS Objectives

Euromex bScope Epi-Fluorescence HBO Microscope - E-Plan IOS Objectives

Euromex
SKU:
BS.3153-EPLi/HBO

DISCONTINUED

You may be interested in:

Current Stock:
Accessory Products
Description

Product Specifications

Viewing Head Trinocular Siedentopf type head, 360° rotatable, 30° inclined Ø 30 mm tubes.
Interpupillary distance is adjustable between 48 to 76 mm.
Diopter ±5 adjustment on the left eyepiece.
Trinocular head comes with Ø 23.2 mm photo port and prisms designed to minimize the light absorption for perfect digital imaging.
Trinocular head has a light path selector (100:0 / 0:100) and generates an erect image
Eyepieces High wide field HWF 10x/22 mm secured eyepiece(s)
Nosepiece Revolving and reversed ball-beared quintuple nosepiece.
Objectives E-Plan IOS 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion infinity corrected objectives.
S40x and S100x oil immersion objectives are spring-loaded.
Optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Stage 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage.
Vernier scale, soft-close removable specimen holder, scratch-resistant.
Focusing Coaxial coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 0.2mm per rotation, total travel approximately 19 mm.
Supplied with an adjustable rack stop to prevent damage to sample and objectives. Coarse adjustment is equipped with friction control.
Condenser Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and swing-out filter holder
Illumination 3 W NeoLED™ Kohler illumination. Internal power supply 100-240 V (CE).
Fluorescence Attachment Epi-illumination with 100W HBO mercury vapor lamp.
Standard fluorescence filter sets for Blue and Green excitation.
External 100-240 V power supply
Package Contents Power cord, dust cover, spare fuse, user manual, 5 ml immersion oil.
Warranty 10 Years Warranty

*** Non-refundable ***

Product Resources

Datasheet

Manual

Fluorescence Manual
