UNITRON 21007 microFOCUS 4K Autofocus Digital Microscope on Flex Arm Stand – 1x–18x Zoom
UNITRONApplications
- Electronics and PCB inspection
- Industrial component inspection
- Manufacturing quality control
- Precision assembly and rework
- Product inspection and defect analysis
- Image documentation and measurement
- Research and laboratory inspection

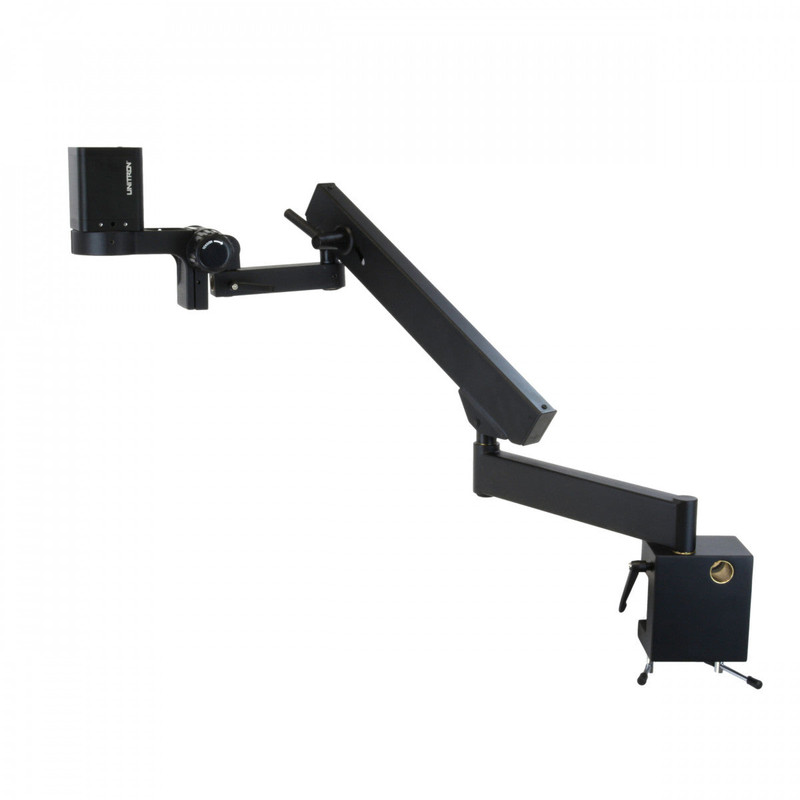

UNITRON 21007 microFOCUS 4K Autofocus Digital Microscope on Flex Arm Stand
The UNITRON 21007 microFOCUS 4K is an autofocus digital inspection microscope designed for high-resolution imaging, inspection, and measurement. Featuring an 8MP Sony IMX415 STARVIS CMOS sensor, it delivers 4K Ultra HD images at 3840 x 2160 resolution with a continuous 1x–18x optical zoom range.
Its built-in software supports standalone operation without a PC, offering image capture, video recording, calibration, measurement, and annotation tools. The integrated LED ring light provides illumination, while HDMI, USB, LAN Ethernet, and SD card connectivity support convenient image viewing, storage, and data transfer.
Key Features
- 8MP 4K Ultra HD imaging at 3840 x 2160 resolution
- Sony IMX415 STARVIS CMOS color sensor
- Continuous 1x–18x optical zoom
- 30fps live video at 4K resolution
- Built-in software for standalone operation without a PC
- Integrated LED ring light with software control
- Autofocus with one-push and manual focus controls
- Image capture in JPG or TIF formats
- 4K video recording in H264/H265 MP4 format
- Calibration, measurement, and annotation tools
- Split-screen comparison of live and saved images
- HDMI, USB, LAN Ethernet, and SD card connectivity
- Articulating flex arm stand with bonder arm and C-clamp included
Product Specifications
| Brand | UNITRON |
| Catalog Number | 21007 |
| Series | microFOCUS 4K |
| Microscope Type | 4K Autofocus Digital Inspection Microscope |
| Sensor | Sony IMX415 STARVIS CMOS, Color |
| Sensor Size | 1/2.8" (5.57mm x 3.13mm) |
| Pixel Size | 1.45µm |
| Resolution | 8MP (3840 x 2160) |
| Frame Rate | 30fps at 3840 x 2160 |
| Optical Zoom | 1x–18x |
| Working Distance | 250mm |
| Depth of Field | 205mm–255mm |
| Field of View | 1x: 255 x 145mm; 18x: 14.2 x 8mm |
| Optical Resolution | 160 lp/mm |
| Illumination | Integrated LED Ring Light |
| Image Capture | 8MP (3840 x 2160), JPG or TIF |
| Video Recording | 8MP (3840 x 2160), 30fps, H264/H265 MP4 |
| Camera Controls | Exposure, Gain, White Balance, Sharpness, Denoise, Saturation, Gamma, Contrast, Brightness |
| Measurement Tools | Calibration, Measurement, Measurement Parameter Export |
| Autofocus Controls | Zoom, Autofocus, One Push, Manual Focus, Reset |
| Interfaces | USB Mouse, USB 2.0, HDMI, LAN Ethernet, SD Card Slot |
| PC Software | AccuView for Windows; AccuView Lite for Windows/macOS |
| Monitor | User-Supplied 4K or HD HDMI Monitor |
| Stand | Articulating Flex Arm Stand with Bonder Arm and C-Clamp |
| Mounting | Ø76mm Mounting Ring, 2 x M4 Holes, 1 x 1/4-20 Threaded Hole |
| Power Supply | DC 12V 3A Adapter |
- Weight:
- 18.00 LBS
- Width:
- 30.00 (in)
- Height:
- 8.00 (in)
- Depth:
- 14.00 (in)
