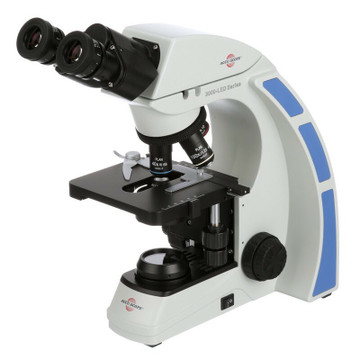

Steindorff S-3000 LED Microscope Series, Plan ObjectivesSteindorff
- Binocular or Trinocular head, 360° rotatable
- 10x/22 focusable eyepieces
- 4x, 10x, 40x, 100x (oil) Plan objectives
- LED illumination with variable control
- 5 Year limited warranty
A new generation of microscopes feature plan finite or high contrast (HC) infinity corrected plan optics. Equipped with 5w LED lamp, field diaphragm, abbe condensers and other optical components, the standard Köhler illumination system delivers consistently bright and free-from-glare specimen illumination, which optimizes a high image quality with brighter and sharper resolutions for photomicrography. The compact body is designed for flexibility which can perform various applications such as brightfield, darkfield, phase contrast, and polarization. Trinocular microscope can be equipped with digital camera and LCD screen for photo and video documentation and image analysis. Limited 5 year warranty.
|Viewing Head||Siedentopf Binocular or Trinocular head, 30° inclined and 360° rotatable, Interpupillary adjustment of 48mm-75mm|
|Eyepiece||High eyepoint WF 10x/22mm with diopter adjustable|
|Nosepiece||Reversed, quadruple or quintuple|
4x/0.1 160/0.17, 10x/0.25 160/0.17, 40xR/0.65 160/0.17, 100xR/1.25 oil 160/0.17
|Focusing System||Low position coaxial coarse and fine focus adjustment knobs, 37.7mm per coarse rotation, 0.1mm per fine rotation, fine focus graduation of 1um, calibration 0.002mm|
|Stage||216mm x 150mm built-in double layer mechanical stage, Graphite surface, rounded edges, Non-extending rack, Cross travel range of 55mm x 75mm, Verniers for X/Y coordinates|
|Condenser||1.25 Abbe condenser with iris diaphragm position guide markings for different objectives.|
|Illumination||Built-in Köhler illumination with field diaphragm, 5w LED for optimum illumination|
- 22.00 LBS
Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you with a Shipping Quote.
If you are dissatisfied with your purchase, let us help you with a replacement, return or repair. Exclusions may apply.
For full details, view our Returns and Exchanges policy.
