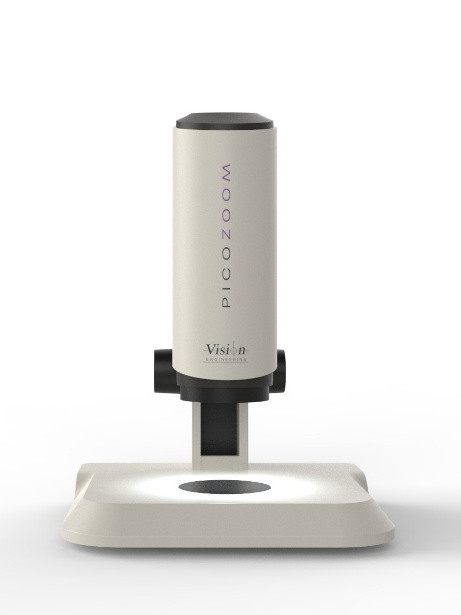

PicoZoom inspection system incorporating the camera, stand and accessories

Release of PicoZoom inspection systems.

Vision Engineering is delighted to announce the release of a new compact video inspection systems. The new PicoZoom is a highly capable, complete inspection solution designed for use in manufacturing industries. Easy to use, with intuitive mouse control, PicoZoom has a host of features that will benefit many different applications.

Packed with features

PicoZoom comes with an impressive list of hardware and software-based features including; 7:1 motorized zoom (24” monitor), auto focus and quadrant illumination and digital tools for annotation and measurement.

Ease to use increases inspection efficiency benefiting users and business alike. The combination of; easy annotation, measurement and reporting; quick recall user system configurations; auto-focus and adjustable lighting; means users get the results they need quickly and with less need for training.

Extended depth of field function delivers sharp images with greater depth of focus than is possible purely optically. By stacking images quickly and efficiently full detail is available to view and record.

PicoZoom – Powerful hardware

PicoZoom’s design gives excellent image quality and control for a wide range of applications. The sleek design is hassle free and easy to clean.

• Magnification: 20x – 140x*
• 7:1 Motorized optical zoom*
• 6x Digital zoom*
• Auto-focus helps ensure sharp images, quickly
• Integrated quadrant ring light with independent quadrant intensity control.
• Still image and video saving on USB stick
• Integrated stand
  * on a 24” monitor

PicoZoom – Connection and customization

PicoZoom allows users to connect into their systems and identify
systems for seamless integration into workflow.

• Connect to LAN networks
• Set saving destination
• Configure file names setup

PicoZoom - Measurement and annotation tools

With 30 digital tools to aid accurate measurement and annotation
of a range of specific features.

• User configurable calibrations for easy measurement
• 30 digital tools to help define and annotate features
• Click-to-edge tool to aid edge identification
• Text annotation tool
• Report data table

Technical Specifications

System components:

PicoZoom is supplied as a complete kit with only one part number, all boxed together. Users only need to add a HDMI monitor.

Kit includes:

• PicoZoom on a stand
• Mouse
• Power supply with multi-region plugs
• HDMI cable
• USB thumb drive
