OPTIKA IM-3F Trinocular Inverted Epi-Fluorescence Microscope, 2 Positions Filter Holder

  • Trinocular head, inclined 45°
  • 10x/22mm eyepieces
  • IOS LWD W-PLAN 4x, PH 10x, PH 20x, 40x objectives
  • LED illumination with variable control
  • HBO Fluorescence attachment
  • 10 Year limited warranty
4-6 Weeks Delivery
Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

IM Series has been engineered and designed to be your ideal solution for fast and reliable routine inspections. The glass stage surface allows an optimal visual access to the objective turret. The straight neck leaves ample room for sample positioning and for the most advanced probes. A particularly simple and ingenious optical design allows stable alignments and smooth and accurate movements.

Assembled in Italy

Product Specifications

Observation Modes Brightfield, Phase Contrast, Fluorescence
Head Trinocular observation head, inclined 45°.
Diopter adjustment on left eyepiece.
Interpupillary adjustment 50-75 mm.
Splitting ratios eyepieces-photo tube: 100/0, 0/100
Eyepieces Wide field eyepieces WF10x/22 with field number 22.

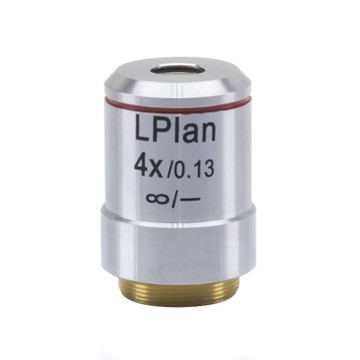

Objectives IOS LWD W-PLAN 4x, 40x
IOS LWD W-PLAN PH 10x, 20x
All objectives are treated with an anti-fungus treatment.
Stage Fixed stage, dimensions 250 x 160 mm.
2 stage insert (glass and metal) with hole for small dimension specimens.

Mechanical stage mountable on the right side of the stage, total dimension = 250 x 230 mm, X-Y translation range 120 x 80 mm, metallic interchangeable inserts for slides, Petri dishes, Terasaki, multi-Well plates, etc.
Pair of side extensions to expand the surface of the stage.
Nosepiece Quintuple revolving nosepiece, rotation on ball bearings.
Focusing Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser LWD condenser, N.A. 0.30, working distance 72 mm. The condenser can be removed to extend the working distance up to 150 mm.
Filter Set 2 positions fluorescence filter holder.
Blue: EX 460-490, DM 500, EM 520LP
Green: EX 527-553, DM 565, EM 575LP

UV (optional): EX 325-375, DM 415, EM 435LP
V (optional): EX 390-420, DM 440, EM 450LP
Illumination Transmitted Light:
Light source type X-LED8 with white 8W LED; light intensity control using a knob on front side of the frame.
Color temperature: 6300K
LED average life time approx. 50,000h
Voltage: 110/240Vac, 50/60Hz, 1A; Fuse: T500mA 250V
Max power required: 13W

Reflected Light:
Mercury burner 100W HBO, light control based on external power supply.
Bulb average life time approx. 300 hours.
Voltage: 10/240Vac, 50/60Hz, 1A; Fuse: F8AL 250V.
Max power required: 125W
Dimensions Height: 495 mm
Width: 230 mm
Width with optional mechanical stage: 300 mm
Depth: 730 mm
Weight: 10 kg
Accessories Blue (LBD) and green filters (IF550). Instruction manual and dust cover included.
Warranty Ten (10) Years mechanical and optical parts
Two (2) Years electrical
