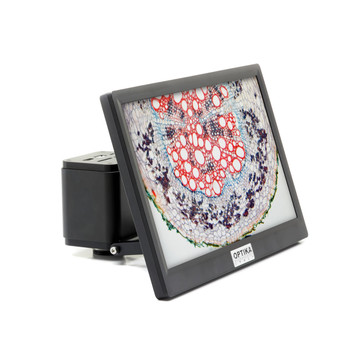

OPTIKA C-WH5 5.0 Megapixel Wi-Fi/HDMI CMOS Camera, 1080P HD

SKU:
OPC-WH5
$1,560.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

Smart and user-friendly dual output (HDMI & Wi-Fi) camera with good resolution (up to 5 MP), high-grade SONY CMOS sensor and HDMI/Wi-Fi connection, recommended for routine operations and whenever measurements are required.

No software installation is required with image and video capturing on SD card when in HDMI mode. No router or external applications are required thanks to the quick and simple camera connection. At any time, it can be connected to PC and used via the downloadable, free of charge software (Windows), which is always available to enable the latest updates. The compact and elegantly designed housing conceals the very latest in camera technology.

Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.

Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately). Wireless mouse, SD card and built-in software included.

  • Simple, intuitive operation with powerful software
  • Universal connection to any microscope brand
  • Up to 5 MP images
  • Dual output mode (HDMI/Wi-Fi)
  • Connectable to PC, smartphones, tablets and any other device
  • Supported by any device (PC, tablet or smartphone)
  • Reliable colour fidelity
  • HDMI cable, mouse and SD card included
  • Downloadable, free of charge software
  • OPTIKA ProView for Windows

Camera Specifications

Camera resolution 2592 x 1944
HD resolution 2 MP
WiFi resolution 5 MP
Signal output HDMI, Wi-Fi
Sensor Size 1/1.8"
Sensor technology CMOS
Sensor type SONY
Image format 16/9
Pixel size 2.4 x 2.4 μm
Frame rate full resolution 25 fps (1920 x 1080) (WiFi)
G Sensitivity 1120mV at 1/30s
Dark Signal 0.15mV at 1/30s
ADC conversion 8 Bit - 12 Bit
Color Depth 1, 4, 8, 24 Bit
Exposure Time 0.03 msec - 918 msec
Binning 1x1
IR filter 380-650 nm (IR-cut filter)
Camera power DC 12V, Multiplug (EU, UK, US), 100/240 Vac, 50/60Hz
C-mount Yes

Accessories

Calibration Slide Yes
Wireless Mouse Yes
16GB SD card Yes
WiFi Adapter Yes
Always Included HDMI cable (1.5m)

Environment Specifications

Working temperature -10 up to +50°C
Storage temperature -20 up to +60°C
Relative Humidity 30% to 80%
Storage Humidity 10% to 60%

System Requirements

Operating System Win 7, 8, 10 (32 or 64 bit)
PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher
RAM: 2 GB or more
USB 2.0
