OPTIKA C-HESC 2.0 Megapixel HDMI CMOS Camera with Built-In HDMI 11.5" Monitor, 720P HD

OPTIKA C-HESC 2.0 Megapixel HDMI CMOS Camera with Built-In HDMI 11.5" Monitor, 720P HD

OPTIKA
SKU:
OPT-C-HESC-0226

DISCONTINUED

You may be interested in:

  • 8-12 Weeks Delivery
  • Non-Cancelable, Non-Returnable
    • Current Stock:
    Accessory Products
    Description

    Cameras have become indispensable nowadays and OPTIKA is offering a line of remarkable solutions for digital imaging. OPTIKA H Series is composed by good definition cameras , allowing to capture high quality images through a simple connection to TV, monitor or projector via HDMI, representing a reliable and cost-effective solution equipped with the latest technology sensors with more vivid colors and great contrast for stunning images.

    This series features Aptina CMOS sensor or top-class Sony CMOS sensor with excellent color reproduction and significantly high frame rates. Thanks to the convenience and simplicity, being extremely intuitive to install and operate, the OPTIKA H Series is the perfect response for various applications in educational and professional fields, industrial quality control and all laboratories. H Series cameras can be simply controlled via a mouse, and capture images to a removable SD card (supplied, 16G).

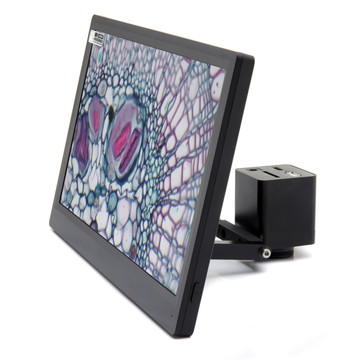

    An extremely intuitive, versatile system delivering great live image and consisting in the combination of the powerful, yet cost effective HDMI C-HE camera (720p) with a 11.5" Full HD LCD screen.

    • All-in-one: save space on the bench, with no need for external devices
    • Feel free to tilt the screen and adjust the position to the preferred level, eliminating fatigue during observation. Ideal also for discussion groups
    • Aptina CMOS sensor with excellent color reproduction for routine applications
    • 720p HD (2 MP, 1280 x 720)
    • C-mount connection on trinocular microscopes only
    • Mouse, 16G SD card and HDMI cable also included

    Camera Specifications

    Digital camera resolution 2 MP (1280 x 720)
    Signal output HDMI
    Sensor Size 1/2.8"
    Sensor technology CMOS
    Sensor type APTINA
    Image format 16/9
    Pixel size 2.8 x 2.8 μm
    Frame rate (HDMI) 30 fps (1280 x 720)
    Sensitivity 510 mV at 1/30sec
    Dark Signal 0.15mV at 1/30sec
    Exposure Time 0.06 msec - 1900 msec
    Binning 1x1
    IR filter 380-650 nm (IR-cut filter)
    Camera power DC 12V
    C-mount YES

    Accessories

    HDMI Cable YES
    Memory card SD card slot (16G)
    Mouse YES

    Environment Specifications

    Working temperature -10 up to +50°C
    Storage temperature -20 up to +60°C
    Relative Humidity 30% to 80%
    Storage Humidity 10% to 60%
    Dimensions 65 x 78 x 88 mm
    Weight 0.5 Kg

    Monitor Specifications

    Size 11.5"
    Signal input HDMI - 1080p
    Resolution 1920 x 1080
    Power supply 12V - 2A
    Dimensions 282 (W) x 180 (H) mm
    Weight 0.54 Kg
