OPTIKA 4083.5 EDUCAM MIC TV CameraOPTIKA
Flexible Multimedia Video Cameras
The EDUCAM® video camera is especially designed to meet the various requirements in the educational field. When it is connected to a professional monitor or simply to a TV set, EDUCAM® is able to carry out many different functions. It can be used as an episcope, for the reproduction of:
- Texts, documents, photographs
- To enlarge small objects, insects, minerals
- For video microscopy, connected to microscopes used in biology or to stereo microscopes
- As an overhead projector, for the projection of drawings
- As a camera for teleconferences, assemblies, meetings
- As a camera for filming, with the help of a video recorder.
Its ultra-high sensitivity enables IT to record clearly even in low-light conditions. The special lens enables you to focus from 0.76 cm, up to an infinite distance. An extremely sensitive microphone (only on Multimedia models), records the teacher’s voice during the lesson, or sounds and noises from the surrounding area, that can be heard via the TV itself, or via a separate amplifying system. The microphone can be switched off if required.
The special 50 or 65cm flexible arm (12mm dia.) and the heavy weight of the base (approx. 2.7 Kg), make EDUCAM® versatile, sturdy and stable at the same time.

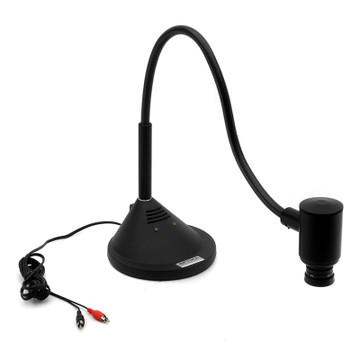

The CCD camera is placed on the end of a flexible arm that can be safely twisted in any position, even projecting from the base, without affecting the system stability. A special joint allows the head to rotate without damaging the wires inside the flexible arm. All models are equipped with an external power supply and a dual adapter for video-microscopy (for biological and stereo microscopes).
|Digital camera resolution||NO|
|Analog camera resolution||PAL 582 x 420|
|Full Image size||640 x 480|
|Pixel size||9.6 x 7.5 micron|
|Frame rate full resolution||50 frames/sec (analog mode)|
|Frame rate other resolutions||NO|
|Sensitivity||Minimum illumination: 0.08 LUX / F1.2|
|Signal / noise ratio||>48 dB|
|Dynamic range||56 dB|
|Max Exposure time||1/60 sec|
|ADC conversion||No (Analog conversion)|
|Color Depth||No (Analog conversion)|
|ON board Memory||NO|
|External Memory Card||NO|
|External camera power||12V DC power supply|
|External Cooling power||NO|
|On camera case IR Filter||700 nm|
|Automatic White Balance||Auto|
|Automatic Gain Control||Auto|
|Automatic Back light control||Auto|
|Camera Purpose||As an Enlarger, as an Episcope, as a microscope Camera|
|Working distance||From 0.76 mm to infinity|
|CS-mount to C-mount Ring||NO|
|Optical adapters||Adapter for microscopes|
|Adapters for Binocular & Monocular microscopes||30mm diameter|
|Always Included||RCA Video cable, SCART for TV plug, Instruction manual, power supply.|
|Working temperature||-10 up to +60°C|
|Storage temperature||-20 up to +70°C|
|Relative Humidity||45% up to 85%|
|Dimensions||Arm length: no arm
Total height: 11 cm, with optical adapter: 14 cm
Base diameter: no base
- 2.00 LBS
- 8.00 (in)
- 6.00 (in)
- 10.00 (in)
