OPTIKA 4083.3 EDUCAM STUDENT PRO TV Camera

SKU:
OP4083.3
$652.00
Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

Flexible Multimedia Video Cameras

The EDUCAM® video camera is especially designed to meet the various requirements in the educational field. When it is connected to a professional monitor or simply to a TV set, EDUCAM® is able to carry out many different functions. It can be used as an episcope, for the reproduction of:

  • Texts, documents, photographs
  • To enlarge small objects, insects, minerals
  • For video microscopy, connected to microscopes used in biology or to stereo microscopes
  • As an overhead projector, for the projection of drawings
  • As a camera for teleconferences, assemblies, meetings
  • As a camera for filming, with the help of a video recorder.

Its ultra-high sensitivity enables IT to record clearly even in low-light conditions. The special lens enables you to focus from 0.76 cm, up to an infinite distance. An extremely sensitive microphone (only on Multimedia models), records the teacher’s voice during the lesson, or sounds and noises from the surrounding area, that can be heard via the TV itself, or via a separate amplifying system. The microphone can be switched off if required.

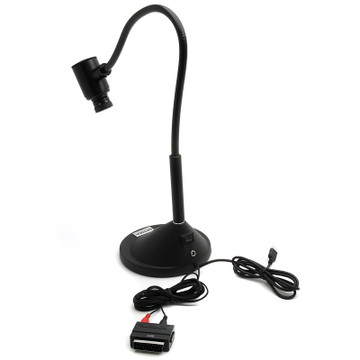

The special 50 or 65cm flexible arm (12mm dia.) and the heavy weight of the base (approx. 2.7 Kg), make EDUCAM® versatile, sturdy and stable at the same time.

The CCD camera is placed on the end of a flexible arm that can be safely twisted in any position, even projecting from the base, without affecting the system stability. A special joint allows the head to rotate without damaging the wires inside the flexible arm. All models are equipped with an external power supply and a dual adapter for video-microscopy (for biological and stereo microscopes).

Product Specifications

Digital camera resolution NO
Analog camera resolution PAL 582 x 420
Signal output PAL
Audio Signal NO
Sensor Size 1/3"
Sensor technology CCD
Image format 4/3
Full Image size 640 x 480
Pixel size 9.6 x 7.5 micron
Frame rate full resolution 50 frames/sec (analog mode)
Frame rate other resolutions NO
Sensitivity Minimum illumination: 0.08 LUX / F1.2
Signal / noise ratio >48 dB
Dynamic range 56 dB
Max Exposure time 1/60 sec
ADC conversion No (Analog conversion)
Color Depth No (Analog conversion)
Microphone NO
ON board Memory NO
External Memory Card NO
External camera power 12V DC power supply
Cooling system NO
External Cooling power NO
On camera case IR Filter 700 nm
Automatic White Balance Auto
Automatic Gain Control Auto
Automatic Back light control Auto
Exposure control Auto
C-Mount connection NO
CS-Mount connection NO
Camera Purpose As an Enlarger, as an Episcope, as a Microscope Camera
Working distance From 0.76 mm to infinity
Objective 8mm
Maximum magnification 90x

Accessories

CS-mount to C-mount Ring NO
Optical adapters Adapter for microscopes
Adapters for Binocular & Monocular microscopes 30mm diameter
Calibration Slide NO
Always Included RCA Video cable, RCA Audio cable, SCART for TV plug, Instruction manual, power supply

Software Specifications

System requirements NO
Supplied Software NO
Driver types NO
Capture features NO
Control parameters NO

General Specifications

Working temperature -10 up to +60°C
Storage temperature -20 up to +70°C
Relative Humidity 45% up to 85%
Dimensions Arm length: 65 cm
Total height: 80 cm
Base diameter: 17 cm
Weight 3.5 Kg
