Motic Panthera TEC POL Binocular Polarizing Microscope – CCIS Optics, 4X–60X Objectives

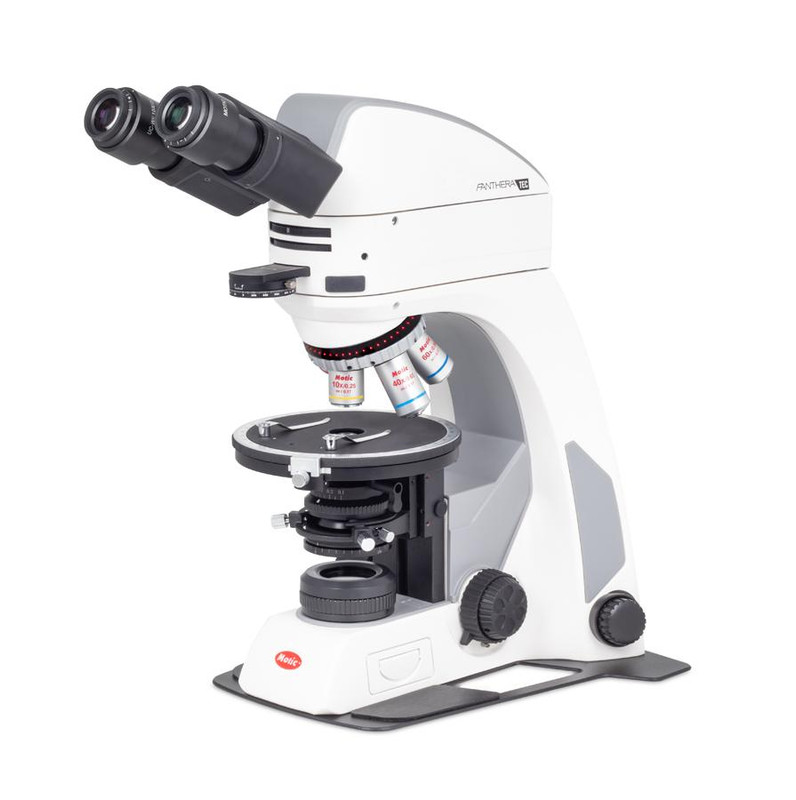

MoticMotic Panthera TEC POL Binocular Polarizing Microscope
The Motic Panthera TEC POL Binocular is designed for examining polarizing materials, including transparent samples and opaque specimens used in technical education and industrial quality control. Its Colour Corrected Infinity Optical System (CCIS®) and strain-free UC Plan Achromatic objectives support the observation of birefringent structures in materials such as fibers and foils.
The microscope features a binocular Siedentopf head with 25° inclination and widefield UC-WF10X/22mm eyepieces. Its intermediate body includes a 360° rotatable analyzer, Bertrand lens, and a slot for compensators to support polarization analysis.
A 360° rotating lockable circular stage, focusable and centerable swing-out Abbe condenser, and coaxial coarse and fine focusing system provide precise specimen positioning. The transmitted-light system uses Full Köhler illumination with an interchangeable halogen/LED light source and intensity control.
Key Features
- CCIS® Colour Corrected Infinity Optical System
- Binocular Siedentopf observation head with 25° inclination
- Widefield UC-WF10X/22mm eyepieces with diopter adjustment
- ±4 diopter adjustment on both eyepieces
- 48–75mm interpupillary distance
- Reversed quintuple coded nosepiece
- 360° rotatable analyzer with integrated Bertrand lens
- Slot for compensators
- CCIS® UC Plan Achromatic strain-free objectives
- 4X, 10X, 40X, and 60X objectives
- 360° rotating, lockable circular stage
- Focusable and centerable swing-out Abbe condenser
- Coaxial coarse and fine focusing with tension adjustment
- 2µm fine-focus precision and 25mm focusing stroke
- Full Köhler transmitted illumination
- Interchangeable halogen/LED transmitted-light source
- Motic LightTracer with light memory and sleep mode
Product Specifications
| Brand | Motic |
| Model | Panthera TEC POL (Binocular) |
| SKU | MOT-600251-IP-1026 |
| Motic Part Number | 1100104600251 |
| Microscope Type | Binocular Polarizing Microscope |
| Optical System | Colour Corrected Infinity Optical System (CCIS®) |
| Observation Head | Binocular head, Siedentopf type |
| Head Inclination | 25° inclined |
| Interpupillary Distance | 48–75mm |
| Diopter Adjustment | On both eyepieces, ±4 diopter |
| Eyepieces | Widefield UC-WF10X/22mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded with single centering holes |
| Intermediate Body | Rotatable analyzer 360°, Bertrand lens, and slot for compensators |
| Objective Classification | CCIS® UC Plan Achromatic (strain-free), DIN |
| Objectives | 4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm) |
| Objective Mounting Thread | W 4/5" × 1/36" (RMS standard) |
| Stage | Circular rotating 360°, lockable |
| Stage Size | Ø160mm |
| Stage Scale | 1° increments, 0.1° vernier scale |
| Condenser | Focusable and centerable Achromat swing-out Abbe condenser, N.A. 0.90/0.13 (strain-free), with rotatable polarizer |
| Diaphragm | Iris diaphragm |
| Focus Mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine Focus Precision | 2µm |
| Focusing Stroke | 25mm |
| Upper Limit Stop | Preset but adjustable |
| Filter Holder | On top of the illuminator with fixing cap |
| Transmitted Illumination | Full Köhler illumination with interchangeable halogen/LED light source |
| Illumination Interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination Features | Motic LightTracer: light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator |
| Transformer | Internal |
| Power Supply | 110–240V (CE) |
| Other Features | USB 2.0 for external camera power |
- Weight:
- 40.00 LBS
- Width:
- 20.00 (in)
- Height:
- 18.00 (in)
- Depth:
- 24.00 (in)
