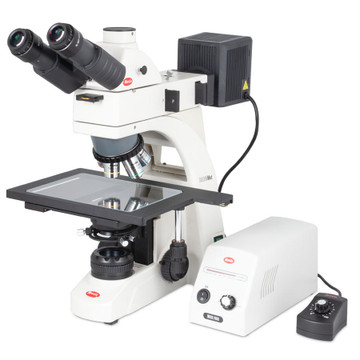

Motic BA310MET-H Trinocular Metallurgical Microscope – Erect Image, 50:50

The Motic BA310MET-H Trinocular Metallurgical Microscope with Erect Image is designed for inspecting large and bulky opaque samples in materials science, metallurgy, and industrial quality control. Its upright pole stand and vertically mounted focusing block provide an extended working range, allowing users to examine specimens that may not fit comfortably under a conventional microscope stand.

The microscope features Motic's Colour Corrected Infinity Optical System (CCIS) and a set of LM Plan Achromatic objectives designed for reflected-light examination of non-transparent specimens. The standard objective set includes 5X, 10X, 20X, and 50X magnifications, supporting detailed inspection of metal surfaces, minerals, and other engineering materials.

The trinocular Siedentopf observation head is inclined at 30° and features a fixed 50:50 light distribution for simultaneous viewing and camera connection. Widefield N-WF10X/20mm eyepieces provide comfortable observation, while individual diopter adjustment on both eyepieces accommodates differences in users' eyesight. The erect-image configuration uses a side-facing quintuple revolving nosepiece.

A hard-coated mechanical stage measuring 180 × 140mm provides 100 × 80mm of X-Y movement for positioning specimens. Coaxial coarse and fine focusing controls include tension adjustment, 2µm fine-focus precision, and a 30mm focusing stroke. The incident-light illuminator uses a 12V/50W quartz halogen source and can be configured with an interchangeable 3W LED illumination option.

Key Features

  • CCIS infinity-corrected optical system for metallurgical and materials inspection.
  • Trinocular Siedentopf head with 30° inclination and fixed 50:50 light distribution.
  • Erect-image configuration with side-facing quintuple revolving nosepiece.
  • LM Plan Achromatic objectives: 5X, 10X, 20X, and 50X.
  • Widefield N-WF10X/20mm eyepieces with individual ±5 diopter adjustment.
  • Vertical pole stand and focusing block for examining bulky specimens.
  • Mechanical stage measuring 180 × 140mm with 100 × 80mm X-Y travel.
  • Coaxial coarse and fine focusing with 2µm precision and 30mm stroke.
  • 12V/50W quartz halogen illumination with interchangeable 3W LED option.

Product Specifications

Optical System Colour Corrected Infinity Optical System (CCIS)
Observation Head Trinocular Siedentopf head
Head Inclination 30°
Trinocular Light Split Fixed 50:50
Interpupillary Distance 55–75mm
Diopter Adjustment ±5 diopters on both eyepieces
Eyepieces Widefield N-WF10X/20mm
Nosepiece Side-facing quintuple revolving nosepiece
Objective Classification CCIS LM Plan Achromatic, DIN
Objectives 5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)
Stand Type Upright pole stand with focusing block and base
Stage Type Hard-coated mechanical stage with coaxial controls
Stage Size 180 × 140mm
X-Y Travel Range 100 × 80mm
Focus Mechanism Coaxial coarse and fine focusing with tension adjustment
Fine Focus Precision 2µm
Focusing Stroke 30mm
Incident Illumination 12V/50W quartz halogen with integrated field and aperture diaphragms
Interchangeable Illumination 3W LED option
Illumination Housing External lamp house
Power Supply 100–240V

Shipping

Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you by requesting a quote.

For further information, please refer to our Shipping Policy.

Weight:
22.00 LBS
Width:
18.00 (in)
Height:
17.00 (in)
Depth:
22.00 (in)
