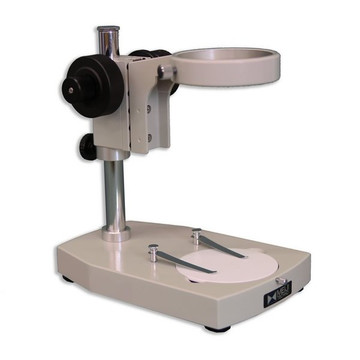

Meiji PKC Pole Stand with FC Focus Block/HolderMeiji Techno
The PKC Pole Stand with FC Focus Block/Holder is Meiji Techno America's most popular Ergonomic Wide Plain Pole stand which requires external illumination and is the perfect stand if you need a coarse and fine focus movement. This Ergonomic stand can accommodate up to three standard size petri dishes on the top surface. Equipped with an integral FC focusing holder with Coarse and Fine focus adjustment and an 84.5mm round diameter opening, mounted on a low profile ergonomic wide cast aluminum alloy stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568) and two stainless steel stage clips (MA593).
The PKC Stand is designed for the zoom (EMZ Series), and can also be used for our turret (EMT Series), fixed (EMF Series) stereo bodies. The PKC stand is a great complement to our Stereo microscopes due to the focus blockâ€™s ability to be easily raised vertically if needed for special applications. A 4" extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551). Chemical Resistant Finish.
|Pillar Height||11" height - 20mm Stainless Steel pillar with safety collar stop accepts a 4" extension pillar (MA551)|
|Stage Plate||Reversible Black & White, 94.5mm Round (MA568)|
|Stage Clips||75mm clip length, 4mm pin, paired (MA593)|
|Focusing Holder||FC Focus Holder Block with coaxial coarse and fine focusing slide block included with 84.2 mm diameter opening which accepts 84 mm stereo body. Rack and pinion mount allows smooth precise focusing over 33mm of travel, fits 20mm mounting post. Coarse focus mechanism incorporates a slip clutch and tension adjustment (FC holder)|
|Illumination Port||No illumination, requires an external illuminator for lighting|
|Manufacturer||MADE IN JAPAN|
|Warranty||LIMITED LIFETIME WARRANTY|
- 12.00 LBS
- 12.00 (in)
- 13.00 (in)
- 14.00 (in)
