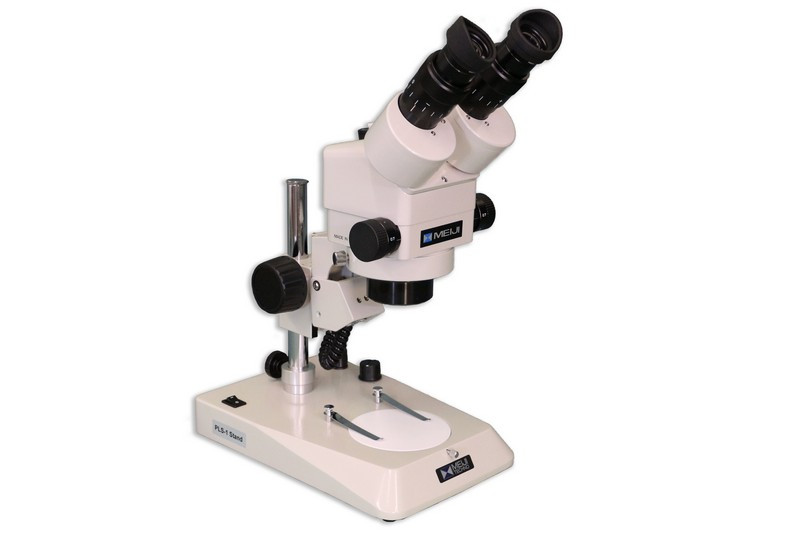

Meiji EMZ-8U Binocular Stereo Microscope with MA502 10X Eyepieces and PLS-1 LED Stand
Meiji Techno
$2,740.00
Write a Review
Meiji Techno
Meiji EMZ-8U Binocular Stereo Microscope with MA502 10X Eyepieces and PLS-1 LED Stand
- EMZ-8U 7X–45X zoom microscope.
- MA502 10X eyepieces included.
- PLS-1 LED pole stand.
- 104mm working distance.
- 100–240V power supply.
The Meiji EMZ-8U Binocular Stereo Microscope with MA502 Eyepieces and PLS-1 LED Stand is a complete stereo microscope configuration designed for high-resolution observation, precision inspection, and routine microscopy applications. The system combines the EMZ-8U binocular zoom microscope head, MA502 Super Widefield 10X eyepiece pair, and PLS-1 low-profile LED stand.
The EMZ-8U features a 0.7X–4.5X zoom range with a 6.5:1 zoom ratio and a 104mm working distance. Greenough optics provide improved image flatness and contrast, while the 360° rotatable binocular body and dual graduated zoom controls provide flexible operation.
The MA502 Super Widefield 10X eyepiece pair provides a Field No. 23.0, 16mm eye relief, 25mm focal length, and a 25mm reticle mount. The MA502 eyepieces are included with this configuration.
The PLS-1 is a low-profile pole stand with built-in incident LED illumination. Its illumination can be operated independently or simultaneously, providing convenient lighting for opaque specimens and inspection applications. The stand includes an F focusing holder with an 84.5mm round opening and a 94.5mm reversible stage plate.
Key Features
- Complete EMZ-8U binocular stereo microscope configuration.
- 0.7X–4.5X zoom range with 6.5:1 zoom ratio.
- 7X–45X magnification with included MA502 10X eyepieces.
- 104mm working distance for routine inspection applications.
- MA502 Super Widefield 10X eyepiece pair included.
- PLS-1 low-profile LED stand with built-in incident illumination.
- 84.5mm F focusing holder opening.
- 94.5mm reversible black and white stage plate.
- 100–240V automatic voltage-sensing power supply.
- Made in Japan with Limited Lifetime Warranty.
Product Specifications
| Specification | Details |
|---|---|
| Microscope Head | Meiji EMZ-8U Binocular |
| Body | Binocular, 360° Rotatable, Cast Aluminum Alloy Construction |
| Zoom Ratio | 6.5:1 |
| Zoom Range | 0.7X–4.5X |
| Magnification | 7X–45X with 10X eyepieces |
| Field of View | 32mm–5.1mm |
| Working Distance | 104mm |
| Eyetube Inclination | 45° |
| Interpupillary Distance | 54mm–75mm |
| Dioptric Adjustment | Dual, ±5 Diopters |
| Eyepieces | MA502 Super Widefield 10X Pair |
| Eyepiece Field Number | 23.0 |
| Eyepiece Eye Relief | 16.0mm |
| Eyepiece Focal Length | 25.0mm |
| Reticle Mount | 25mm |
| Stand | PLS-1 Low-Profile LED Pole Stand |
| Illumination | Built-in 5W Incident LED |
| Focusing Holder | 84.5mm Round Diameter Opening |
| Stage Plate | 94.5mm Reversible Black and White Stage Plate |
| Stage Clips | Two Stainless Steel Stage Clips |
| Power Supply | Automatic Voltage Sensing, 100–240V |
| Stand Dimensions | 330mm × 300mm × 255mm |
| Construction | Cast Aluminum Alloy |
| Finish | ESD Safe, Chemical Resistant |
| Country of Manufacture | Made in Japan |
| Warranty | Limited Lifetime Warranty |
Included Components
- EMZ-8U Binocular Stereo Microscope Head
- MA502 Super Widefield 10X Eyepiece Pair
- PLS-1 LED Pole Stand
Note: The PLS-1 stand is primarily designed for Meiji EMZ Series zoom stereo microscope bodies and can also be used with compatible EMT and EMF series stereo bodies when incident illumination is required.
- Weight:
- 24.00 LBS
- Width:
- 15.00 (in)
- Height:
- 11.00 (in)
- Depth:
- 9.00 (in)
