Meiji COX/LED Coaxial Vertical Illuminator with Transformer

Meiji Techno
(You save $245.70 )
Current Stock:
Adding to cart… The item has been added

This coaxial vertical illuminator is used when observing flat, highly reflective specimens such as integrated circuits, semi-conductor wafers, polished metal specimens, solder balls, or magnetic recording heads. The coaxial vertical illuminator mounts between the RZB body and the binocular viewing head and directs light from a LED lamp down through the objective onto the specimen. The coaxial illuminator is powered by a free standing transformer. Total magnification is increased by a factor of 1.5X when using the coaxial illuminator.

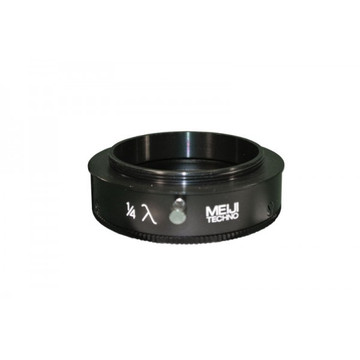

  • Requires MA762 1/4 wave plate in mount for RZ plan objective
  • When used with MA740 (plan objective 0.5X, W.D. 164mm) it will work best between zoom range of 2.5X - 7.5X, not recommended between 0.75X - 2.5X
  • When used with MA741 (plan objective 0.75X, W.D. 101mm) will work best between zoom range of 1.5X - 7.5X, not recommended between 0.75X - 1X due to insignificant lighting.


Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you by requesting a quote.

For further information, please refer to our Shipping Policy.

7.00 LBS
10.00 (in)
8.00 (in)
14.00 (in)
