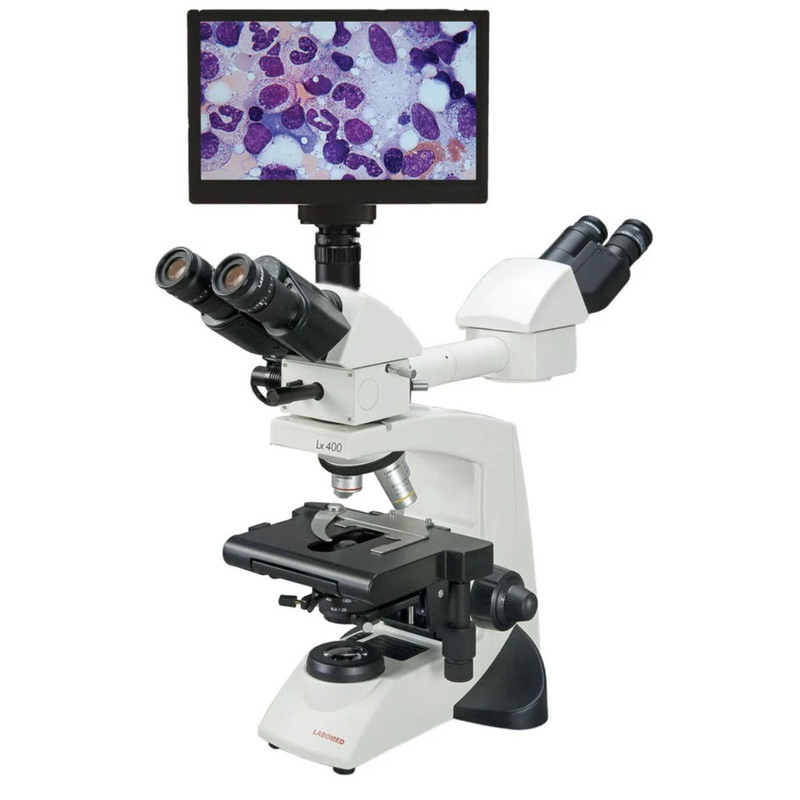

Labomed Lx400 LED Dual View HD Digital LCD Teaching Microscope Package
LABOMED
$5,093.25
Write a Review
LABOMED
Labomed Lx400 LED Dual View HD Digital LCD Teaching Microscope Package
Questions about this digital package?
Contact us for more details, custom configurations, or microscope advice.
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Labomed 9129000 Dual View Bridge
$2,498.00 -
-
-
-
-
-
-
-
-
From the most basic to the more complex laboratory applications, the Lx 400 stands strong as a truly modular system. With an Infinity corrected Plan Achromatic optical system, users will enjoy crisp images with excellent color fidelity and high accuracy in image rendition for a wide spectrum of specimens. Each configured below includes 4x, 10x, 40x, 100x objectives and LED variable illumination. There are a wide variety of accessories and options available. Comes with a manufactures five year warranty.
*** Dual view teaching attachment can be positioned for front to back or side to side use. ***
All of our products including Digital LCD screen are 100% authentic Labomed.
Product Specifications
| Stand | Single mold aluminum stand with hand rests for enhanced comfort and stability |
| Viewing Bodies | Siedentopf Trinocular head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75mm (main unit) Dual view bridge with Binocular Observation Head, WF 10x/20mm eyepieces, illuminated LED pointer and 100V-240V AC power adapter (secondary unit) |
| Eyepiece | Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal. Accepts 26mm reticle. |
| Nosepiece | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives | RP series infinity corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal |
| Mechanical stage | Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip |
| Condenser | Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides |
| Focusing | Coaxial coarse and fine focusing on ball drive system for smooth operation |
| Illumination | LED (built in rechargeable battery) illumination with variable illumination control. Up to 100,000 hours of LED life |
| Electrical | Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
