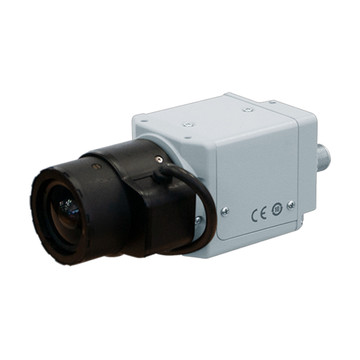

Hitachi KP-HD20A Compact HDTV Color Camera, 2.1 Megapixels



Current Stock:
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras


  • Full HD (HD-SDI) for Industrial use - 2.1 million pixel RGB Beyer CMOS sensor, External event trigger for machine vision use
  • Coaxial cable transmission - Easy replacement of conventional analogue (PAL/NTSC), camera with this full HD model, since it can transmit HD-SDI signal with existing coax cables. Approx. 100m transmission is realized by 5C-2V. Coax cable
  • Small size/light weight / high sensitivity - Compact camera body size (44mm width and height) combined with light weight make this a flexible unit for many applications. High sensitivity of minimum photographic subject illumination 0.3lx means this camera can be used in many low light situations
  • Non-compressing high definition
  • Low delay (less than 16 ms) Direct monitoring is possible

Product Specifications

Imaging Device 1/3" CMOS
Total Pixels 2.1M pixels
Video Format* 1080・59.94i / 50i / 30p/25p
Video Output HD-SDI
Transmission Distance* 100m (5C-2V use)
Minimum Photographic Subject Illumination* 0.3lx (F1.2/AGC : MAX)
Electronic Shutter Fixed/AES
Backlight Compensation ON/OFF (Area to selection is possible.)
White Balance Control Auto/Priset/Manual
Contrast Compensation Dark part gray level correction
Lenses A galvanometer system
Remote Control RS-232C
Lens Mount C/CS mount
Power Supply Voltage DC+12V
Ambient, Operating -10°C to +50°
External Dimensions* Approximately 44(W) x 44(H) x 59(D)mm
Mass* Approximately 130g (The lens is excluded)
