Euromex iScope Face-to-Face Microscope - E-Plan IOS Objectives, Dual BinocularEuromex
You may be interested in:

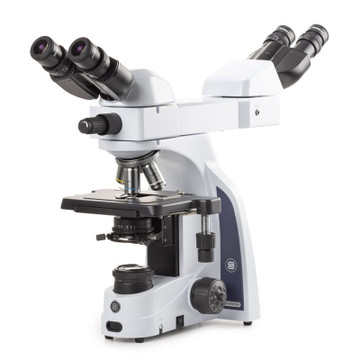

The Euromex iScope Face-to-Face Microscope (IS.1154-EPLi) is equipped with dual binocular heads. The microscope allows for two users and is perfect for teaching purposes and simultaneous observation of specimens.
|Viewing Head||Two Face-to-Face binocular heads with Siedentopf 30° inclined tubes.
Interpupillary distance is adjustable between 48 to 76 mm.
The main binocular head has one diopter ±5 adjustment, the second head has two adjustments.
A central Face-to-Face attachment has a joystick to move a green or red laser pointer across the entire field of view.
|Eyepieces||Extended wide field EWF plan 10x eyepieces with 20mm field of view.|
|Nosepiece||Revolving quintuple reversed nosepiece on ball bearings.|
|Objectives||E-Plan IOS 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion infinity corrected objectives.
Optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
|Stage||216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage.|
|Focusing||Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 24 mm.
Rack-stop for protection of slides and objectives. Friction adjustment.
|Condenser||Height adjustable Abbe N.A. 1.25 condenser with an opening for optional sliders.|
|Illumination||Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V power supply (CE).
iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy.
|Package Contents||Power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover.|
|Warranty||10 Years Warranty|
