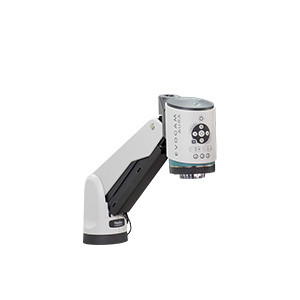

Vision Engineering EVO Cam AURA HD Button Secure Digital Microscope (ECH012S)
The Vision Engineering EVO Cam AURA HD Button Secure (ECH012S) is a configurable Full HD 1080p digital microscope with a front button keypad interface. EVO Cam AURA combines high image quality with a full set of integrated tools for accurate, repeatable and efficient inspection workflows - focus stacking, image comparison, customizable presets, annotation and measurement are all built in, keeping results consistent across operators, shifts and sites. It is a complete all-in-one inspection solution: no PC required.
Secure variant: designed for restricted environments where wireless connectivity, Bluetooth or internal storage is not permitted. This version does not include Bluetooth or Wi-Fi modules.
Configure the system with an objective lens, illumination and stand to suit the task (sold separately). Stand shown in images is for illustration only.
Key Features
- See details clearly: high-resolution images with custom optics and high-quality optical zoom from overview to close detail
- Autofocus and focus stacking for sharp images across uneven samples or parts with depth
- Intelligent auto-recognition: magnification and measurements update automatically when lenses change
- Intelligent lighting: ring-light settings are automatically recalled when the ring-light is changed
- 10 configurable presets and Supervisor Mode to lock in critical settings
- Image comparison (curtain, pulse, 2nd screen, source image matching) against golden samples
- Customizable go/no-go overlays, annotation and calibrated measurement tools
- Captured images include annotations, measurements, metadata and time stamps
Camera Specifications
| Model | EVO Cam AURA HD Button - Secure |
| Part Number | ECH012S |
| Sensor Type | CMOS |
| Sensor Size | 1/2.8" |
| Output Resolution | FHD (1920 x 1080) |
| Frame Rate | 60 fps |
| Aspect Ratio | 16:9 |
| Optical Zoom | 30x |
| Digital Zoom | 12x |
| Control Interface | Front button keypad |
Optical Specifications (HD Button)
| Objective Lens | Magnification (Min. Zoom) | Horizontal FOV (Min.) | Magnification (Max. Zoom) | Horizontal FOV (Max.) | Working Distance |
|---|---|---|---|---|---|
| X0.45 (OBL001) | 2.5x | 232 mm | 74.2x | 7.8 mm | 161.8 mm |
| X0.62 (OBL002) | 3.4x | 167 mm | 102.4x | 5.7 mm | 108.3 mm |
| X1.0 (OBL003) | 5.5x | 86 mm | 165.1x | 4.6 mm | 80.6 mm |
| X1.5 (OBK004) | 8.3x | 44 mm | 248x | 2.4 mm | 42.5 mm |
| X2.0 (OBK005) | 11x | 36 mm | 331x | 1.8 mm | 29.4 mm |
Magnification based on a 27" 4K monitor.
Physical Specifications
| Dimensions | 12.5 x 17.3 x 14.5 cm (4.92 x 6.81 x 5.71 in) |
| Weight | 1.34 kg (2.95 lbs) (standard model) |
| HDMI Ports | 2 |
| USB-A Ports | 3 |
| USB-B Ports | 1 |
| ULM Ports | 2 |
| IP Rating | IP20 |
| Input Voltage | +24V |
Software Features
| Focus | Auto, Manual, Selectable spot |
| Exposure | Auto, Shutter priority, Aperture priority, Manual, Selectable spot |
| Zoom | Zoom, Set zoom limits, Zoom to |
| Image Control | Auto monitor size detection, Auto lens detection, Focus stacking, Contrast enhancement, Gamma control, Visibility enhancer, Infra-red, Black & white, White balance |
| Process Control | 10 Configurable presets, Supervisor mode, Customizable system name, Time stamp, Scale bar, Image info, PDF Viewer |
| Image Comparison | Curtain, Pulse, 2nd Screen, Source image matching |
| Annotation | Text, Circle, Ellipse, Square, Rectangle, Line, Arrow, Auto label |
| Measurement | Digital caliper, Circle, Ellipse, Square, Rectangle, Line, Arrow, Multiple calibration points |
| Connectivity | LAN and USB3 (accessory required); wireless functions not included on Secure variant |
| File Format | PNG, JPEG, PDF |
| Lighting Control | Auto lighting detection, Level, Quadrant selection |
| Languages | English, French, German, Spanish, Italian, Portuguese, Chinese, Japanese, Korean |
Applications
- Electronics: SMT solder joint, component spacing and pad geometry inspection, rework documentation
- Automotive and precision engineering: edge condition checks, coating inspection, failure analysis
- Aerospace and defence: surface condition checks, defect review, traceable inspection records
- Medical device manufacturing: component verification, cleanliness inspection, assembly checks
- Research and laboratory: consistent documented imaging and collaboration
Specifications per Vision Engineering. Vision Engineering has a policy of continuous development; specifications are subject to change without notice.
