UNITRON 14620 MEC4 Inverted Metallurgical Microscope
UNITRON
$4,927.50
$5,475.00
(You save
$547.50
)
Write a Review
UNITRON
UNITRON 14620 MEC4 Inverted Metallurgical Microscope
-
-
UNITRON 131-10-15 WF15x/16mm Focusing Eyepiece, Single
$94.50$105.00 -
UNITRON 131-10-20 WF20x/12.5mm Focusing Eyepiece, Single
$105.30$117.00 -

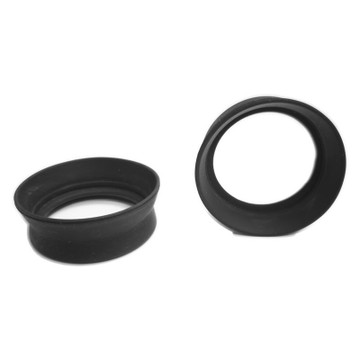

UNITRON 131-10-01 Rubber Eyeguards (Pair)
$16.20$18.00 -
UNITRON 146-15-05 5x LWD Metallurgical Infinity Plan Objective
$241.20$268.00 -
UNITRON 146-15-10 10x LWD Metallurgical Infinity Plan Objective
$300.60$334.00 -
UNITRON 146-15-20 20x LWD Metallurgical Infinity Plan Objective
$396.90$441.00 -
UNITRON 146-15-50 50x LWD Metallurgical Infinity Semi-Apo Objective
$1,018.80$1,132.00 -
UNITRON 146-15-100 100x Dry LWD Metallurgical Infinity Plan Objective
$1,198.80$1,332.00 -
UNITRON 00-2010-35 0.35x Focusable C-Mount Adapter
$190.80$212.00 -
UNITRON 00-2010-50 0.50x Focusable C-Mount Adapter
$190.80$212.00 -
UNITRON 00-2010-65 0.65x Focusable C-Mount Adapter
$190.80$212.00 -
UNITRON 00-2010-01 1.0x Focusable C-Mount Adapter
$94.50$105.00 -
UNITRON 00-2010-P Photo Tube
$99.90$111.00 -
UNITRON 146-20-01 MEC4 Polarizer Slider
$191.70$213.00 -
-
-
-
UNITRON's new MEC4 inverted metallurgical microscope is designed for the examination and analysis of metallurgical samples and prepped material for the automotive, aerospace, medical device and electronics industries. The compact design of the MEC4 makes it an affordable inverted microscope with outstanding optical performance, perfect for in-line sample inspection for manufacturing, production and assembly applications where strict control of materials is required.
The MEC4 delivers, bright, crisp images at all magnification levels. With a wide range of c-mount adapters, the MEC4 can easily be connected to our Excelis HD or Lumenera® digital cameras for easy image processing. Designed for brightfield and simple polarization observation, the MEC4 delivers professional features at an affordable price in a compact, easy to use design.
Product Specifications
| Observation Method | Brightfield and simple polarizer/analyzer 360° rotating; blue, green and frosted filters |
| Viewing Head | Trinocular viewing head, inclined 45⁰, 54-75mm interpupillary adjustment |
| Imaging Port | 100% binocular or 20% binocular / 80% camera |
| Eyepieces | WF10x/22mm focusing eyepieces with roll-down eyeguards |
| Objectives | Infinity M Plan Achromat LWD 5x, 10x, 20xR, and semi-Apo 50x |
| Nosepiece | Quintuple revolving nosepiece with vertical action movement |
| Stage | Attachable mechanical stage, with right hand coaxial controls; travel range: 120mm (X) 78mm (Y), Ø12mm and Ø25mm aperture teardrop stage plate inserts |
| Focusing | Vertical action movement revolving nosepiece (fixed stage); Coaxial coarse and fine focusing controls |
| Illuminator | 5 watt variable LED illuminator, built-in lever type condenser, field and aperture diaphragms, filter slider for blue, green and frosted filters |
| Warranty | 5-year limited warranty for parts, labor, and electronic components 1-year warranty for LED bulb. Free Microscope Service Protection |
| Certification | ISO 9001 and ISO 14001; CE; RoHS. |
Product Resources
- Weight:
- 25.00 LBS
- Width:
- 20.00 (in)
- Height:
- 18.00 (in)
- Depth:
- 28.00 (in)
