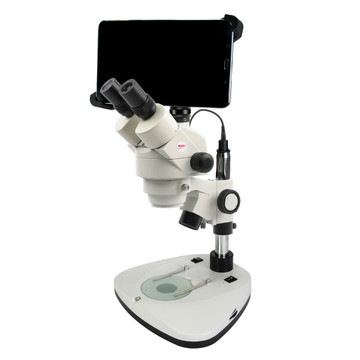

Swift M29TZ Trinocular Stereo Microscope With Integrated 8" Tablet - 4.0 Mega Pixels, 10x to 40x Zoom Magnification

SKU:
SWM29TZ-SM99CL-BTI1

DISCONTINUED

Current Stock:
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

The M29TZ is ideal for laboratory, industrial, and educational use. These stereo microscopes feature zoom objectives with a continuous magnification range of 10X-40X, offering added versatility that is not an option with fixed power stereo microscopes. Corded energy-efficient LED stand with variable transbase illumination to control brightness and a top light that adjusts for optimal lighting angles.

Now with detachable 8" tablet and all-new base, the M29TZ-SM99CL-BTI1 is ideal for laboratory, industrial and educational use. This stereo microscope features zoom objectives with a continuous magnification range of 10X to 40X, offering added versatility that is not an option with fixed power stereo microscopes.

Like the Moticam X3, this WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, and wireless laptops. Tablet includes preloaded Motic apps.

MAGNIFICATION

  • 1X to 4X continuous zoom

OPTICAL SYSTEM

  • Paired widefield eyepieces are 45° inclined, with diopter adjustment. Interpupillary adjustment from 55mm to 75mm.
  • Trinocular Port accepts both video and SLR adapters.
  • Interlocked eyepiece tubes with diopter for increased focus acuity.
  • Viewing head rotates 360°, locks in place by tightening thumb screw.
  • Paired objectives are parfocalled, parcentered, and achromatic.
  • Magnification changed by rotating magnification dial.

ILLUMINATION

  • Top light is high intensity 3W LED with rheostat control
  • Bottom light is high intensity 3W LED
  • Base mounted light controls permit choice of top only, bottom only, or dual illumination
  • Heavy-duty 3-wire grounded cord and plug
  • Auto-switching power supply (100-240VAC / 47-63Hz)
  • Supplied with American plug

FOCUSING

  • Rack and pinion focusing with slip clutch and tension adjustment.
  • "Slip-clutch" system prevents users from damaging the focusing mechanism.

STAGE

  • Two 80mm stage plates (Frosted glass and reversible black/white plastic contrast plates)
  • Blue filter for transmitted light
  • Locked-on stage clips

TABLET

  • 8" LCD Android tablet with 1280x800 screen resolution
  • Connection: WiFi; micro SD card
  • WiFi Resolution 1920x1080 / 1280x720
  • 4.0MP capture resolution
  • WiFi (2.4 or 5GHz) and Ethernet (RJ45)
  • MotiConnect App
  • Connect 5 WiFi devices at one time
  • Connect office/clinic/business network through RJ45 port connection

FRAME

  • Professional, all-metal frame
  • Heavy-duty post mount with locking support collar permits up or down adjustment of viewing head to accomodate a variey of specimens

Shipping

Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you with a Shipping Quote.

Weight:
50.00 LBS
Width:
17.00 (in)
Height:
14.00 (in)
Depth:
23.00 (in)
