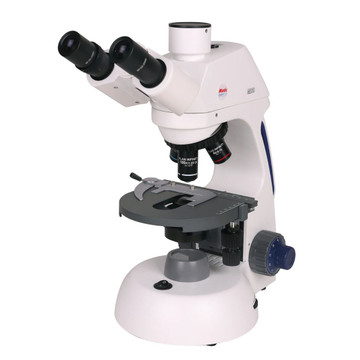

Swift M17T-MP Trinocular LED Phase Microscope

SKU:
SWM17T-MP
$2,109.00
(No reviews yet)
  • Trinocular head, 30° inclined
  • WF 10x/20mm eyepieces
  • 4x, PH 10x, PH 40x, 100x Infinity plan objectives
  • LED illumination with variable control
  • Limited Lifetime Warranty
Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

The M17T-MP compound microscope features infinity corrected plan optics, ideal for college laboratories, veterinary and medical applications. Supplied with trinocular head, this research level microscope also incorporates 3W LED illumination and wide field 20mm eyepieces for a very crisp image.

With the optional C-mount adapter, you can easily attach any C-mount ready imagining device.

Product Specifications

Optical System Infinity optical system
Viewing Head Trinocular, 30° inclined, with diopter and interpupillary adjustment 54mm to 76mm
Eyepieces Widefield 10x/20mm eyepieces
Nosepiece Quad objective turret, ball-bearing mounted for smooth, precise positioning of objectives
Objectives Infinity Plan 4x (0.10 N.A.), 100xR oil (1.25 N.A.)
Infinity Phase 10x (0.25 N.A.), 40xR (0.65 N.A.)
All are parfocalled, parcentered and color-coded.
Stage Large 5-3/4" x 5-1/2" (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls
Condenser Phase contrast 5 position Abbe condenser N.A. 1.25 (BF, DF, Phase 1, Phase 2, Phase 3)
Illumination 3w LED with variable intensity control, 110V - 220V switching power supply, unit shipped with American plug
Focusing System Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated
Warranty Limited Lifetime Warranty against defects in material and workmanship for the life of the product.
3-year warranty on electrical components.
Free Microscope Service Protection

Product Resources

Shipping

Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you with a Shipping Quote.

Weight:
21.00 LBS
Width:
21.00 (in)
Height:
20.00 (in)
Depth:
12.00 (in)
