Slider Micrometer, 10mm/1000 Divisions

Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras

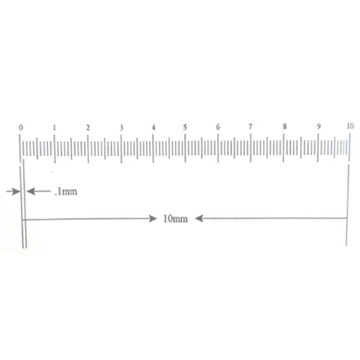

10 mm in 1000 divisions. Each division equals 10 microns, center to center. Line width is 4 microns wide. Numbered 0 thru 10, each 1 mm increment respectively.

Lines Chrome deposition
Flatness 2 waves or better
Glass Thickness 1″ x 3″ x 0.110″ thick
Surface Quality 20/10
Parallelism 2 min

Calibrations traceable to NIST. (National Institute of Standards and Technology). ISO-17025 accredited through Perry Johnson Laboratory Accreditation, Inc. Our best measurement capability expressed as an uncertainty is +/- 0.00003 in / 0.0007mm.

This NIST slide micrometer includes 10 points of calibration. For example, if you had a 1mm scale with sub-divisions every 0.1mm, therefore every division line will be calibrated, that would consist of 10 calibration points (0 to .1mm, 0 to .2mm, 0 to .3mm etc.). Any point thereafter is $35.00 each. Customer is to specify points to be calibrated. Calibrated items cannot be returned if ordered incorrectly.

Calibration costs are additional to the stage micrometer cost, add another week for delivery if calibrations are required.

Stage micrometers are manufactured using Low Expansion Borosilicate Float Glass. Glass size – 1.0" x 3.0" x .110" (3mm)

After calibration, the stage micrometer is shipped with a certificate of calibration showing the actual dimensions measured, calibration equipment used, environmental conditions, N.I.S.T. traceable test number and certificate serial number. This serial number is also engraved into the glass of the stage micrometer.

Please Note: Allow approximately 2 weeks for delivery of this special order, non-returnable item.


Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you by requesting a quote.

For further information, please refer to our Shipping Policy.

1.00 LBS
2.00 (in)
2.00 (in)
2.00 (in)
