Scienscope NZ-PK5D-AN, NZ Stereo Zoom Binocular Microscope on Dual Arm Boom Stand with LED Fiber Optic Annular Ring Light, 8x to 50x Magnification

Scienscope NZ-PK5D-AN, NZ Stereo Zoom Binocular Microscope on Dual Arm Boom Stand with LED Fiber Optic Annular Ring Light, 8x to 50x Magnification

Scienscope
SKU:
SCSNZ-PK5D-AN
$1,794.92
$1,950.99
(You save $156.08 )
Current Stock:
Adding to cart… The item has been added
Accessory Products
Description

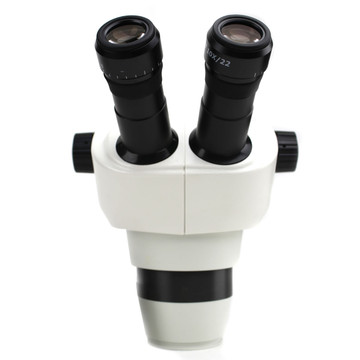

The NZ Stereo Zoom Binocular Microscope is designed for all industrial, electronic, and medical manufacturing applications. It boasts a new, rugged, air and moisture tight housing, and unbreakable eyepiece ports. It is perfect for the rigors of the assembly line or any harsh manufacturing environment. This also makes the NZ virtually maintenance free.

With the NZ series you will be able to view or inspect your work with unequaled clarity and know that the durability of the microscope will never be compromised. With a wide variety of Eyepieces, Focus Mount, Stand, Illumination, and auxiliary lens accessories, you will be able to find the perfect system to meet your needs.

  • Precision optics
  • Medical Device Standard
  • Maintenance free
  • Sealed body
  • Zoom Range: 4x - 200x with options
  • FOV: 55mm - 1.6mm with options
  • Dual Arm Boom Stand
  • 0.5x Auxiliary Lens
  • LED fiber optic illuminator
  • Fiber optic annular ring light guide

5 Year warranty on binocular head, 1 Year warranty on mechanical and electrical components.

NZ Body Specifications

Microscope Body Zoom Range 0.8x - 5x
Zoom Ratio 1:6.3
Magnification w/ 10X eyepieces 8x to 50x
Field of View 27.5mm - 4.4mm
Working Distance 115mm
Eyepieces Inclination 45°
Dioptric Adjustment ±5 Dual Independent
Interpupillary Adjustment 52mm - 75mm
Microscope Ring Mount Diameter 76mm

Stand Specifications

Total Weight 40 lbs
Dimensions of Base 10.25" x 11.25" x 0.7"
Horizontal Arm 20" Length; 0.8" Diameter
Vertical Post 15" Length; 1.47" Diameter
Mounting Dowel 5/8" Standard Diameter
Tip Over Weight 21 lb
Safety Collar Yes
Warranty 1 Year

Focus Mount Specifications

Hole Diameter 76mm - Standard Size
End Adapter 5/8" (15.875mm) - Standard Size
Focusing Travel Distance ±1"
Warranty 1 Year

Led Fiber Optic Illuminator Specifications

Luminosity/Brightness 5.3kfc
Life 10,000 hrs
Color temperature 6000~7000k
Power input 85~265 VAC
Power output 24 VAC
Fiber Adapter 5/8"
Dimensions 3.75" (W) x 6"(D) x 5.75" (H)
LED Power 24Watt
Warranty 1 Year
Optional Light Filters Red, Blue, and Yellow
Annular Light Guide
Numerical Aperture 0.54
Acceptance angle 55°
Color temperature 5870k
Fiber diameter 50µm
Bundle length ≤ 10M
Fiber Length 36"
Inner Diameter 2.3"
End Adapter Diameter 5/8" (Standard)
Warranty 1 Year

NZ Optical Specifications

Objective Lens Eyepieces Working Distance
10x 15x 20x
MAG FOV (mm) MAG FOV (mm) MAG FOV (mm)
0.5x 4x-25x 55-8.8 6x-37.5x 40-6.4 8x-50x 31.2-5.0 211mm
1x 8x-50x 27.5-4.4 12x-75x 20-3.2 16x-100x 15.6-2.5 115mm
2x 16x-100x 13.8-2.2 24x-150x 10-1.6 32x-200x 7.8-1.3 43.5mm
