Motic SMZ-160 TH Head (Trinocular Head)
Motic
$879.00
Write a Review
Motic

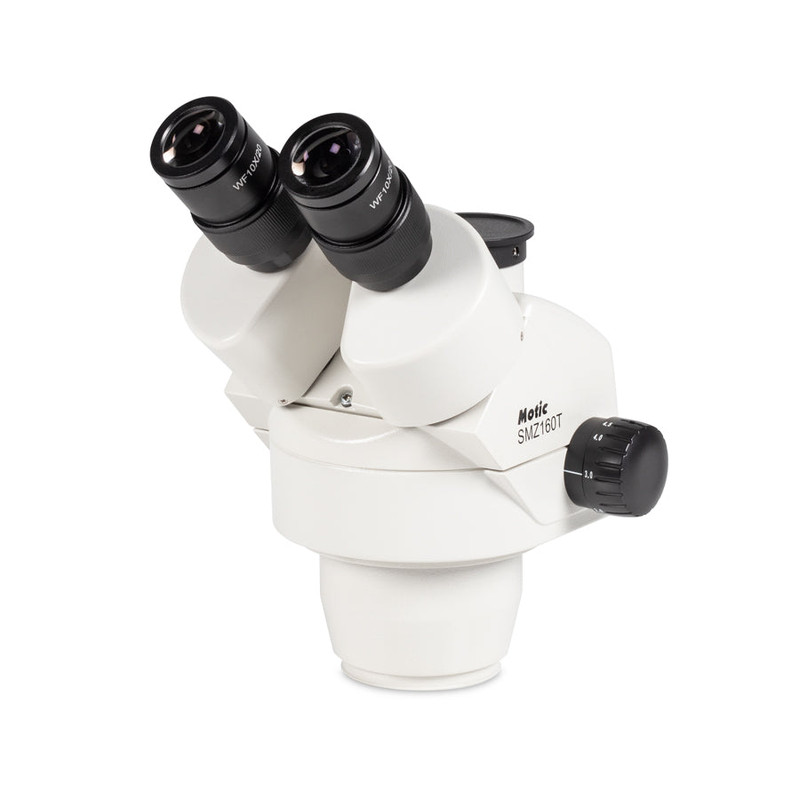

Motic SMZ-160 TH Head (Trinocular Head)
Non-Cancelable, Non-Returnable
A stereo microscope head based on a Greenough optical system. The parfocal 6:1 zoom optics is meant for OEM purposes or the integration in experimental setups. The trinocular head with 45° inclination is adjustable in a range of 50-75mm Interpupillary distance. The Widefield eyepieces WF10X/20mm provide a quick sample overview. A working distance of 110mm gives freedom for manipulation work in a standard magnification range of 7.5X-45X. A fixed light split of 50:50 allows observation and documentation at the same time.
Specifications
| Model | SMZ-160 TH head |
| SKU | 1101010100921 |
| Observation tube | Trinocular head |
| Optical system | Greenough |
| Inclination | 45º inclined |
| Trinocular light split | 50:50 |
| Interpupillary distance | 50-75mm |
| Diopter adjustment | On both tubes, +/- 5 diopter |
| Eyepieces | Widefield WF10X/20mm |
| Objectives system | Zoom, ratio 6:1 |
| Objectives | 0.75X~4.5X |
| Working distance | 100mm |
| Accessories included | Dust cover |
| Dimensions LxWxH | 280x220x367mm |
| Weight Net | 1.4kg |
| Standard contrast technique | Brightfield |
Motic Part Number: 1101010100921
