Motic SMZ-160-BP Binocular Stereo Microscope – 0.75X–4.5X Zoom, No Illumination

Motic
SKU:
MOT-300151-IP-1026
¥184,146.78
Non-Cancelable, Non-Returnable
Current Stock:
Adding to cart… The item has been added

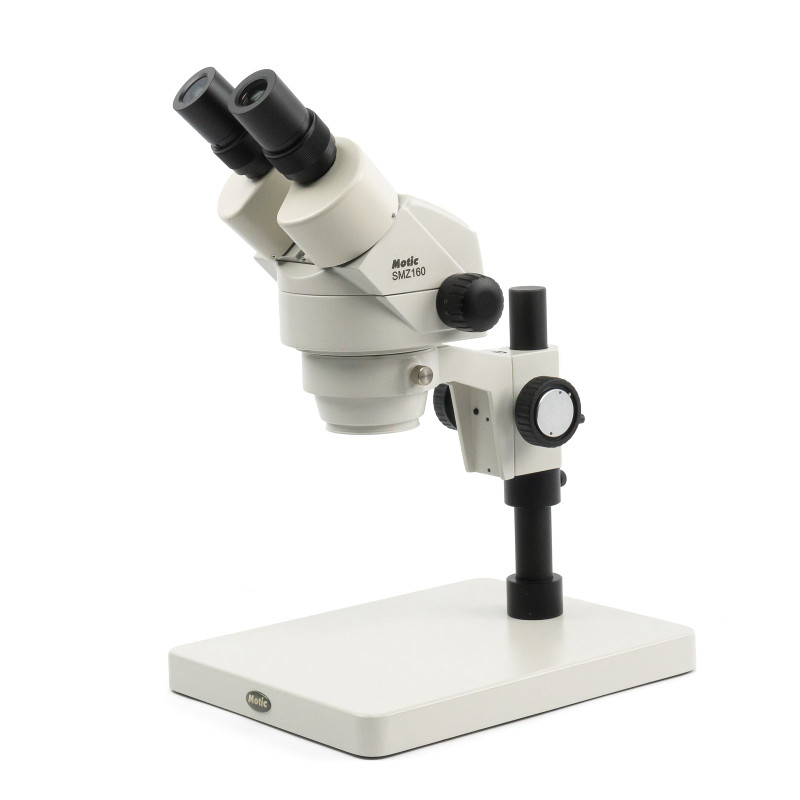

MOTIC SMZ-160-BP Binocular Stereo Microscope – No Illumination

The MOTIC SMZ-160-BP is a professional-quality stereo microscope designed for industrial and educational settings. Featuring a Greenough optical system and a continuous 6:1 zoom ratio, this microscope provides flexibility for a wide range of inspection, observation, and research applications.

The microscope features a binocular viewing head with a 45° inclined observation angle and widefield WF10X/20mm eyepieces. Its 0.75X–4.5X zoom objective system and standard working distance of 100mm provide convenient specimen observation and manipulation.

The SMZ-160-BP comes with a pole-type stand without integrated illumination. Optional auxiliary lenses and substitute eyepieces can extend magnification up to 180X. Additional contrast methods, including polarization microscopy and darkfield microscopy, can be implemented using optional accessories.

Key Features

  • Professional-quality binocular stereo microscope for industrial and educational applications
  • Greenough optical system for stereoscopic observation
  • 45° inclined binocular viewing head
  • Widefield WF10X/20mm eyepieces
  • Adjustable interpupillary distance of 55–75mm
  • Diopter adjustment of ±5 on both eyepiece tubes
  • Continuous zoom objective system with a 0.75X–4.5X range
  • 6:1 zoom ratio
  • Standard working distance of 100mm
  • Coarse focusing system with tension adjustment
  • 43mm focusing stroke
  • Pole-type stand without illumination
  • Includes dust cover
  • Magnification expandable up to 180X with optional accessories
  • Optional polarization and darkfield microscopy accessories

Product Specifications

Brand MOTIC
Model SMZ-160-BP
SKU MOT-300151-IP-1026
Motic Part Number 1100201300151
Microscope Type Stereo Zoom Microscope
Optical System Greenough
Observation Tube Binocular Head
Viewing Angle 45° Inclined
Interpupillary Distance 55–75mm
Diopter Adjustment ±5 Diopter on Both Tubes
Eyepieces Widefield WF10X/20mm
Objectives 0.75X–4.5X
Objectives System Continuous Zoom, 6:1 Ratio
Working Distance 100mm
Stand Type Pole-Type Stand Without Illumination
Focus Mechanism Coarse Focusing System with Tension Adjustment
Focusing Stroke 43mm
Head Holder For Ø25mm Column and Ø76mm Head

Shipping

Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you by requesting a quote.

For further information, please refer to our Shipping Policy.

Weight:
16.00 LBS
Width:
16.00 (in)
Height:
14.00 (in)
Depth:
18.00 (in)
