Motic SM7TR-P A1X Trinocular Stereo Microscope – 1X Plan Achromat Objective, 7:1 Zoom

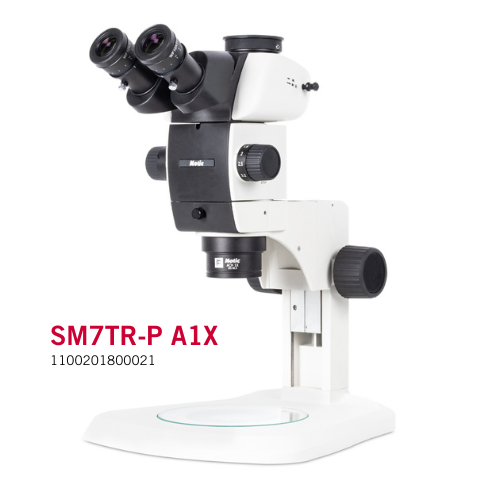

MoticMOTIC SM7TR-P A1X Trinocular Stereo Microscope with 1X Plan Achromat Objective
The MOTIC SM7TR-P A1X is a high-performance trinocular stereomicroscope designed for industrial inspection, quality control, research, and technical applications. Featuring a Galilean infinity optical design with a Common Main Objective (CMO), the SM7 Series provides true color reproduction, high resolution, and low image distortion for detailed specimen observation.
The microscope features a 7:1 zoom system with a magnification range of 0.8X–5.6X and a 1X Plan Achromat objective. Its trinocular viewing head, 30° inclined observation angle, and widefield WF10X/22mm eyepieces support comfortable viewing and digital imaging. The standard working distance of 90mm provides convenient access to specimens during inspection and handling.
The SM7TR-P A1X is supplied with a fixed-arm stand without integrated illumination. External light sources can be implemented for applications requiring additional illumination. Its coarse focusing system includes adjustable tension and a 120mm focusing stroke for convenient specimen positioning.
Key Features
- High-performance trinocular stereomicroscope for industrial and technical applications
- Galilean infinity optical design with Common Main Objective (CMO)
- Trinocular viewing head with 30° inclined observation angle
- Selectable trinocular light split of 100:0 / 20:80
- Widefield WF10X/22mm eyepieces with diopter adjustment
- Interpupillary distance adjustment from 55–75mm
- 1X Plan Achromat objective
- 7:1 zoom system
- 0.8X–5.6X zoom range with 10-step adjustment
- Standard magnification range of 8X–56X with 10X eyepieces
- 90mm standard working distance
- Fixed-arm stand without integrated illumination
- External light sources can be implemented
- Coarse focusing system with tension adjustment
- 120mm focusing stroke
- Includes dust cover and Ø160mm black/white stage plate
Product Specifications
| Brand | MOTIC |
| Model | SM7TR-P A1X |
| SKU | MOT-800021-IP-1026 |
| Motic Part Number | 1100201800021 |
| Microscope Type | Trinocular Stereo Zoom Microscope |
| Optical System | Galilean Infinity Optical Design, Common Main Objective (CMO) |
| Observation Tube | Trinocular Head |
| Viewing Angle | 30° Inclined |
| Trinocular Light Split | 100:0 / 20:80 |
| Interpupillary Distance | 55–75mm |
| Diopter Adjustment | On Both Eyepieces, +5/-8 Diopter |
| Eyepieces | Widefield WF10X/22mm with Diopter Adjustment |
| Objective Classification | Plan Achromat |
| Objective Magnification | 1X Plan Achromat Objective |
| Objectives System | Zoom, Ratio 7:1 |
| Zoom Range | 0.8X–5.6X (10-Step) |
| Standard Magnification Range | 8X–56X with WF10X Eyepieces |
| Working Distance | 90mm |
| Numerical Aperture | 0.1 |
| Stand Type | Fixed-Arm Stand |
| Head Holder | For Ø76mm Head |
| Focus Mechanism | Coarse Focusing System with Tension Adjustment |
| Focusing Stroke | 120mm |
| Power Supply | Not Applicable – No Integrated Illumination |
| Accessories Included | Dust Cover, Black/White Plate Ø160mm |
| Base Dimensions | 310 × 290mm |
| Column/Arm | 254mm |
- Weight:
- 24.00 LBS
- Width:
- 18.00 (in)
- Height:
- 16.00 (in)
- Depth:
- 22.00 (in)
