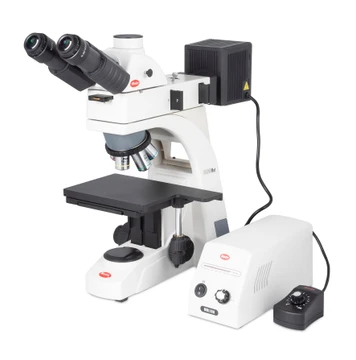

Motic BA310MET - Trinocular
$6,250.80
Non-Cancelable, Non-Returnable
-
-
Motic PA53MET - PA53MET
$13,156.80 -
Motic PX43 BIO
$6,945.60 -
Motic PX43 FS6
$21,622.80 -

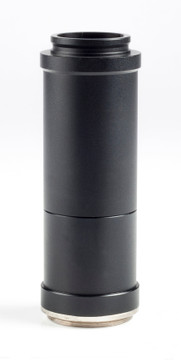

Motic Photo Adapter
$195.60
Motic’s PX43MET is a professional Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulkier materials samples. The microscope is a best fit for automotive, machinery, and metal fabrication industries and similar fields.
Descriptions
This full featured microscope is capable of:
- DIC for better depth imaging
- Polarization
- Brightfield and Darkfield contrast methods
- Advanced measurement, image processing and documentation through a Moticam and the Motic Analysis Software.
Read more: Choosing the Right Microscope for Industrial and Material Sciences Applications
Specifications
| Model | PX43MET Inverted Microscope |
| Optical System | Color Corrected Infinity Optical System (CCIS) |
| Observation Tube | 360° swivel range, height difference 40mm |
| Interpupillary Distance | Adjustment range: 48mm to 75mm |
| Eyepieces | UC-WF 10X/FN22 |
| Trinocular Light Path | 20：80 |
| Nosepiece | Quintuple Revolving Nosepiece |
| Objectives | Plan S-Apo BD 5X；Plan S-Apo BD 10X；Plan S-Apo BD 20X；LPlan S-Apo BD 50X |
| Stage Size (mm) | Size：320(W) X 194(L) mm，Stroke：50 X 50mm |
| Focus | Course/Fine Focus Knob，Course 42mm/ revolution，Fine 0.2mm/ revolution，0.002mm/ marks |
| Transmitted Light | Reflected Light 100W Light House RL100.00 |
| Electronics | 115 / 230V~，60 / 50Hz Halogen Light ：12V / 100W |
| DIC | Optional |
| Analyzer | Optional |
| Polarizer | Optional |
Downloads
Catalog
Specifications
Manual
Motic Part Number: 1100105400011
- Weight:
- 45.00 LBS
- Width:
- 27.00 (in)
- Height:
- 14.00 (in)
- Depth:
- 28.00 (in)
