Motic Panthera TEC MAT BD Trinocular Industrial Microscope – 6" × 4" Stage
MoticMotic Panthera TEC MAT BD Trinocular Industrial Microscope – 6" × 4" Stage

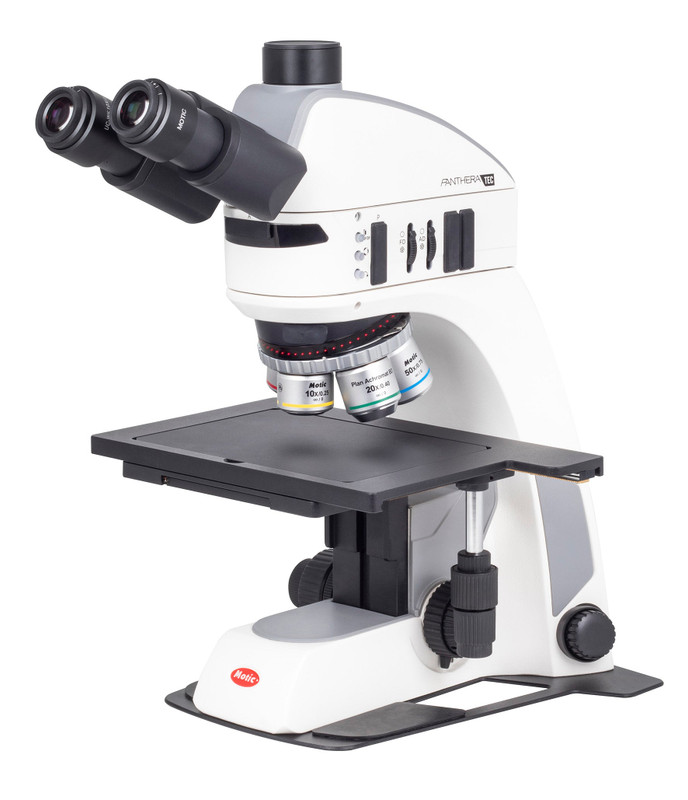

The Motic Panthera TEC MAT BD is an industrial microscope designed for the inspection of semiconductors and various other materials, especially in industrial quality control and technical education. It combines brightfield and darkfield contrast with Motic's unique segmental illumination system to provide versatile observation for material science applications.
The microscope features a CCIS® optical system and BD Plan Achromatic and S-Apo objectives designed for brightfield and darkfield observation. Its smart segmental LED ringlight provides oblique incident illumination, helping detect scratches and other defects on flat and reflective surfaces without moving the sample.
The trinocular viewing head features a fixed 50:50 light split, while the large mechanical stage provides 150 × 100 mm (6" × 4") X-Y travel for positioning samples during inspection.
Key Features
- CCIS® Colour Corrected Infinity Optical System
- Trinocular Siedentopf viewing head, 25° inclined and 360° swiveling
- Fixed 50:50 trinocular light split
- UC-WF10X/22mm widefield eyepieces with diopter adjustment
- Reversed quintuple coded nosepiece
- CCIS® BD Plan Achromatic and S-Apo objectives for brightfield and darkfield
- 3W smart segmental LED ringlight with integrated field and aperture diaphragms
- Five-segment smart darkfield illumination mode
- Hard-coated mechanical stage with built-in low-position coaxial stage control and glass plate
- Stage size: 300 × 180 mm
- X-Y travel range: 150 × 100 mm (6" × 4")
- Coaxial coarse and fine focusing system with tension adjustment
- Fine focus precision of 2 µm
- 25 mm focusing stroke
- Motic LightTracer with light memory, sleep mode, and nosepiece LED light intensity and mode indicator
- LED color temperature interchangeability
- Internal transformer with 110–240V power supply
- USB 2.0 connection for external camera power
Product Specifications
| Brand | Motic |
| Model | Panthera TEC MAT BD (6" × 4") |
| SKU | MOT-600221-IP-1026 |
| Motic Part Number | 1100104600221 |
| Microscope Type | Trinocular Industrial / Materials Microscope |
| Optical System | Colour Corrected Infinity Optical System (CCIS®) |
| Observation Head | Trinocular head, Siedentopf type, 360° swiveling |
| Head Inclination | 25° inclined |
| Trinocular Light Split | Fixed 50:50 |
| Interpupillary Distance | 48–75 mm |
| Diopter Adjustment | ±4 diopter on both eyepieces |
| Eyepieces | Widefield UC-WF10X/22mm with diopter adjustment |
| Intermediate Body | Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer |
| Nosepiece | Reversed quintuple, coded |
| Objective Classification | CCIS® BD Plan Achromatic and S-Apo (Pb free), DIN, for Brightfield and Darkfield |
| Objectives | 5X/0.13 (WD 17.3 mm), 10X/0.25 (WD 16.3 mm), 20X/0.40 (WD 7.3 mm), S-Apo 50X/0.80 (WD 1 mm) |
| Optional Objective | S-Apo 100X/0.90 (WD 0.5 mm) |
| Objective Mounting Thread | M32 |
| Stand Type | Upright |
| Stage | Hard-coated mechanical stage with built-in low-position coaxial stage control and glass plate |
| Stage Size | 300 × 180 mm |
| X-Y Travel Range | 150 × 100 mm (6" × 4") |
| Condenser | Not listed for this BD configuration |
| Focus Mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine Focus Precision | 2 µm |
| Focusing Stroke | 25 mm |
| Upper Limit Stop | Preset but adjustable |
| Incident Illumination | LED 3W smart segmental ringlight with integrated field and aperture diaphragms |
| Illumination Interchangeability | LED color temperature interchangeability |
| Illumination Features | Motic LightTracer: light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator |
| Transformer | Internal |
| Power Supply | 110–240V (CE) |
| Other Features | USB 2.0 for external camera power |
| Standard Contrast Technique | Brightfield, Darkfield |
| Optional Contrast Technique | Polarization |
- Weight:
- 40.00 LBS
- Width:
- 20.00 (in)
- Height:
- 18.00 (in)
- Depth:
- 24.00 (in)
