Motic BA310POL Trinocular Polarizing Microscope – LM-PL Objectives, EPI Illumination, 20/80 Light Split
MoticMotic BA310POL Trinocular Polarizing Microscope – LM-PL Objectives & EPI Illumination

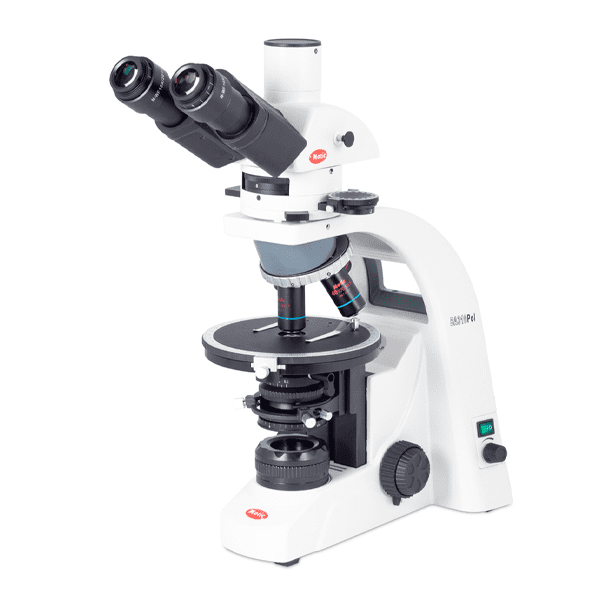

The Motic BA310POL Trinocular Polarizing Microscope with LM-PL objectives and EPI illumination is designed for polarized-light examination of geological, mineralogical, and industrial material samples. Its Colour Corrected Infinity Optical System (CCIS®) provides clear imaging for the observation of birefringent specimens.
This configuration features a trinocular Siedentopf head with a 20/80 light split, allowing camera connection for image capture and documentation. The microscope incorporates LM-PL objectives for reflected-light examination and an EPI illuminator to support the inspection of opaque and reflective materials.
The BA310POL includes a 360° rotating circular stage, rotatable polarizer and analyzer, and a focusable Bertrand lens for polarized-light analysis. Its transmitted Köhler illumination and reflected EPI illumination provide flexibility for examining different types of specimens.
Key Features
- CCIS® infinity-corrected optical system
- Trinocular Siedentopf head with 20/80 light split
- 30° inclined, 360° rotatable observation head
- LM-PL objectives for reflected-light examination
- EPI illuminator with 12V/50W halogen lamp
- Transmitted Köhler illumination with 6V/30W halogen lamp
- 360° rotating, lockable circular stage
- Rotatable polarizer and analyzer
- Focusable Bertrand lens for conoscopic observation
- Designed for petrography, mineralogy and materials examination
Product Specifications
| Brand | Motic |
| Model | BA310POL Trinocular (20:80) with LM-PL Objectives and EPI |
| Optical System | Colour Corrected Infinity Optical System (CCIS®) |
| Observation Head | Trinocular Siedentopf type |
| Trinocular Light Split | 20:80 |
| Head Inclination | 30°, 360° rotatable |
| Interpupillary Distance | 55–75mm |
| Diopter Adjustment | ±5 diopter on both eyepieces |
| Eyepieces | N-WF10X/20mm with diopter adjustment and cross reticle on right eyepiece |
| LM-PL Objectives | Long-working-distance Plan objectives for reflected-light examination; available LM objective magnifications include 5X, 10X, 20X, 50X and 100X |
| Nosepiece | Reversed quadruple revolving nosepiece with centerable positions |
| Objective Mounting Thread | RMS standard (W 4/5" × 1/36") |
| Intermediate Tube | Rotatable analyzer, focusable Bertrand lens and compensator slot |
| Polarizer | 360° rotatable, mounted on condenser carrier |
| Analyzer | 360° rotatable analyzer |
| Stage | 360° circular rotating, lockable stage |
| Stage Diameter | 160mm |
| Stage Scale | 1° increments with 0.1° vernier scale |
| Condenser | Focusable and centerable strain-free Achromat swing-out Abbe condenser, NA 0.90/0.13 |
| Diaphragm | Iris diaphragm |
| Transmitted Illumination | Köhler quartz halogen, 6V/30W with intensity control |
| Reflected Illumination | EPI illuminator, 12V/50W halogen |
| Focus Mechanism | Coaxial coarse and fine focusing with tension adjustment |
| Fine Focus Precision | 2µm |
| Focusing Stroke | 17mm |
| Power Supply | 100–240V (CE) |
| Dimensions (L × W × H) | 400 × 220 × 452mm |
| Motic Part Number | 1100100402412 |
- Weight:
- 46.00 LBS
- Width:
- 18.00 (in)
- Height:
- 17.00 (in)
- Depth:
- 22.00 (in)
