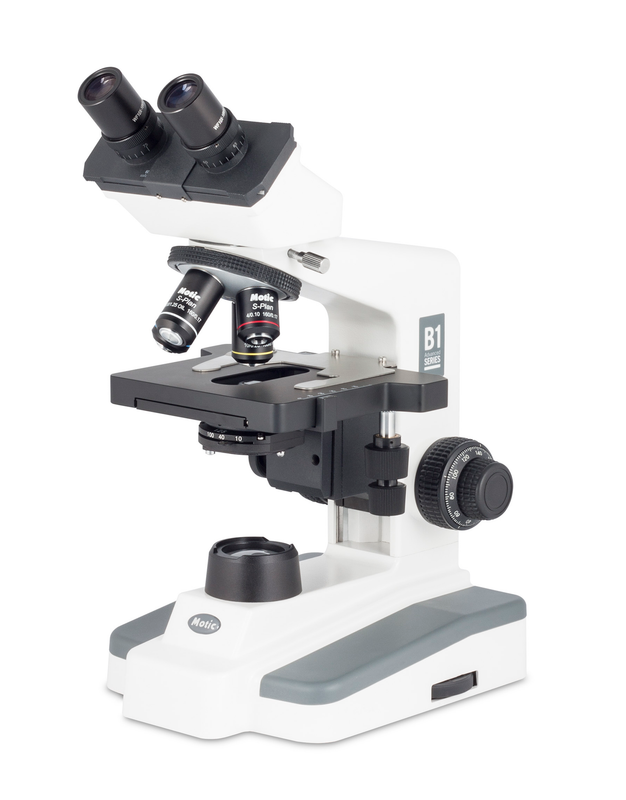

Motic B1-252ASC Educational Binocular Microscope
The Motic B1-252ASC is an educational binocular compound microscope designed for university, laboratory, biology, and medical applications. It combines reliable mechanical construction with an Achromatic Super Contrast (ASC) optical system to provide clear and detailed specimen observation.
Equipped with four ASC objectives, a binocular viewing head, a rackless mechanical stage, and 3W LED illumination, the B1-252ASC is suitable for examining prepared slides, tissue sections, smears, and other transparent specimens.
Key Features
- Binocular educational compound microscope
- Finite optical system with 160mm tube length
- Achromatic Super Contrast (ASC) objectives
- Four objectives: 4X, 10X, 40X, and 100X oil immersion
- 45° inclined, 360° rotating binocular head
- Quadruple revolving nosepiece with click stops
- Built-in low-position coaxial rackless mechanical stage
- Focusable 1.25 N.A. Abbe condenser with iris diaphragm
- Coaxial coarse and fine focusing system
- 3W LED illumination with intensity control
Product Specifications
| Model | B1-252ASC |
| Microscope Type | Educational Compound Microscope |
| Optical System | Finite Optical System, 160mm |
| Observation Head | Binocular, sliding type |
| Head Inclination | 45° |
| Head Rotation | 360° |
| Interpupillary Distance | 55–75mm |
| Diopter Adjustment | ±5 diopter on both tubes |
| Eyepieces | Widefield WF10X/18mm |
| Nosepiece | Quadruple revolving nosepiece with click stops |
| Objective Classification | Achromatic Super Contrast (ASC), DIN |
| Objectives | 4X/0.10, 10X/0.25, 40X/0.65/S, 100X/1.25/S Oil |
| Total Magnification | 40X, 100X, 400X, 1000X |
| Stand Type | Upright |
| Stage | Built-in low-position coaxial rackless mechanical stage with sample holder |
| Stage Travel Range | 76 × 40mm |
| Condenser | Focusable Abbe condenser, 1.25 N.A. |
| Diaphragm | Iris diaphragm with filter holder |
| Focusing Mechanism | Coaxial coarse and fine focusing with tension adjustment |
| Fine Focus Precision | 2µm minimum increment |
| Upper Limit Stop | Preset and adjustable |
| Illumination | Transmitted 3W LED |
| Illumination Control | Intensity control |
- Weight:
- 19.00 LBS
- Width:
- 18.00 (in)
- Height:
- 17.00 (in)
- Depth:
- 22.00 (in)
