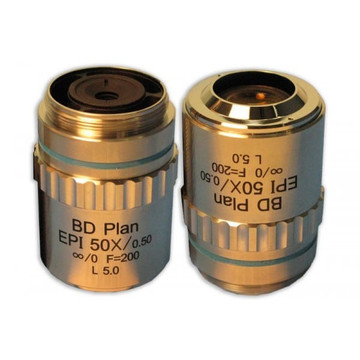

Meiji MA926 50x BD Plan Semi Apo Epi Objective for MC60, MC70, MT7500, MT8500, IM7500 Series

Meiji Techno
SKU:
MA926
$1,430.50
$1,571.98
(You save $141.48 )
Current Stock:
Adding to cart… The item has been added

N.A. 0.75, F.L. 4.0mm, W.D. 0.38mm

The Meiji Techno MA926 Plan Semi Apo Epi BD 50X, dry Metallurgical Brightfield/Darkfield Objective Infinity Objective is made to the highest Japanese quality and optical standards, utilizing an Infinity Tube Lens Design F=200mm. Designed to meet the most advanced metallurgical brightfield /darkfield upright and inverted imaging requirements. This objective represents the culmination of Meiji Techno's Japanese Optical technology. This objective offers increased brightness and the highest possible N.A. in its class for maximum light gathering ability. Designed to correct lateral and axial chromatic aberrations over the entire field of view. This objective produce images that are flat, crisp and clear with high contrast and optical resolution. This objective works with a wide array of applications. The stated magnification is based on a Tube lens of 200mm. Nosepiece mounting threads is 26mm diameter threads, 36 TPI (Threads per inch), 55° Whitworth. This objective is compatible with all Infinity Corrected Optical System.

MA926 Plan Semi Apo Epi BD 50X, dry Metallurgical Brightfield/Darkfield Objective Infinity Objective is also an option in our MT7500 and MT8500, IM7500, MC60, MC65, MC70, MC75, MCS-60, MCS-70 Metallurgical Brightfield /Darkfield Upright and Inverted Series.

Product Specifications

Type Plan Semi Apo Epi BD (Metallurgical)
Optical Infinity Corrected ∞ Tube Lens
Tube Length F=200mm
Magnification 50X
Numerical Aperture (N.A.) 0.75
Focal Length (F.L.) 4.0mm
Working Distance (W.D.) 0.38mm
Parfocal Distance 45mm
Diameter Threads 0.7965" (20.1mm) DIN Standard
TPI 36
Whitworth 55°
Diameter (mm) -mm
Length (mm) -mm
Weight (g) 70g
Oil
IS9001
