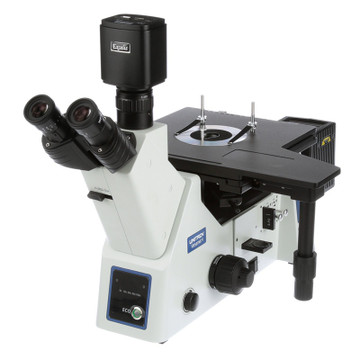

Meiji IM7530 Inverted Metallurgical Digital Microscope Package, Brightfield/Darkfield

Meiji IM7530 Inverted Metallurgical Digital Microscope Package, Brightfield/Darkfield

Meiji Techno
SKU:
MIM7530-DIG-PK
$13,869.80
$15,560.00
(You save $1,690.20 )

Questions about this digital package?

Contact us for more details, custom configurations, or microscope advice.

Current Stock:
Adding to cart… The item has been added
Need Help?
Our microscope experts are here to help you find the best product and answer all your questions.
Contact Us
Free Service Protection
We've got you covered. Every purchase of a microscope includes free yearly microscope service and inspection.
Learn More
Go Digital
Add a digital camera to your microscope to capture photos and videos of your specimens or samples.
Shop Microscope Cameras
Accessory Products
Description

Microsocpe Specifications

Viewing Head Siedentopf type trinocular, inclined at 30°, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube with depolarizer (30mm I.D. eyetubes)
Eyepieces SWH10x Widefield high eyepoint eyepiece, Field No. 22 (accepts 25mm diameter reticle)
Nosepiece Quintuple, side facing, with positive precision detent, click stops
Objectives Infinity Corrected Plan Epi BD 5x, 10x, 20x and 50x
Focus Ergonomically low positioned, coaxial coarse and fine focus knobs with adjustable tension
Stage Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls
Illumination Vertical Koehler illuminator equipped with 12V 50W Halogen bulb, Variable rheostat and automatic voltage sensing power supply
Filters LB100 Blue clear 19.5mm diameter filter in metal mount
G533 Green clear 19.5mm diameter filter in metal mount
ND50 Neutral density filter, 19.5mm diameter filter in metal mount
Polarizing filter, 19.5mm diameter filter in metal mount
Warranty LIMITED LIFETIME WARRANTY

Product Resources

Brochure

Manual

Shipping & Returns

Shipping

Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you by requesting a quote.

For further information, please refer to our Shipping Policy.

Weight:
28.00 LBS
Width:
15.00 (in)
Height:
27.00 (in)
Depth:
17.00 (in)
